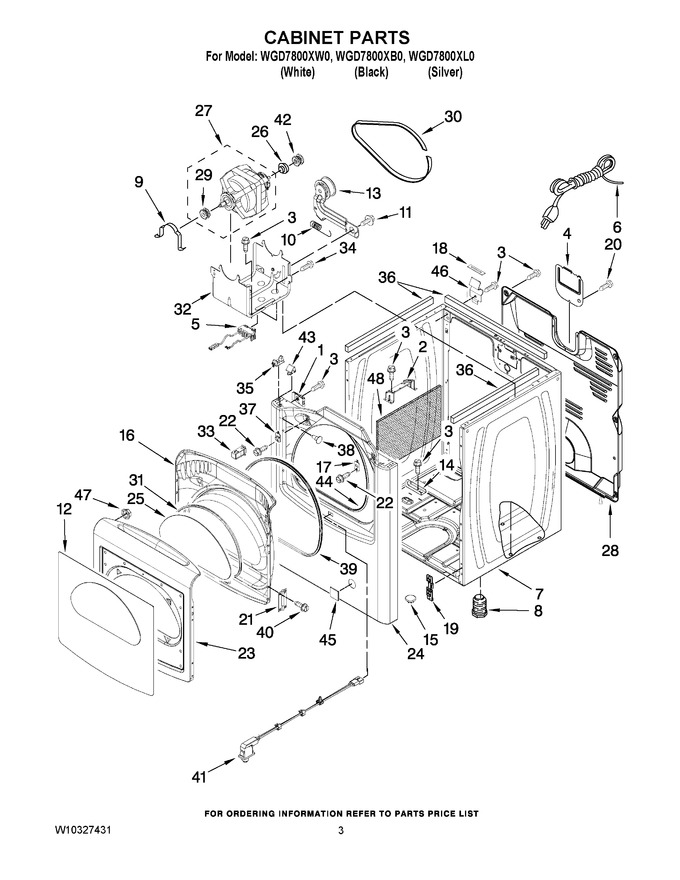

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10007520		Clip, Ground				$ 30.94
2	8544753		Bracket, Burner		Appelez-nous	-
3	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 8.25
4	W11736322		Plate, Cover Terminal Block   (Replaces: 8558833)		Appelez-nous	-
5	WPW10411937		Switch, Broken Belt   (Replaces: W10314253)			Immediately	$ 36.06
6	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
7	W10183832		Cabinet (silver)		Appelez-nous	-
7	W10183831		Cabinet (black)		Appelez-nous	-
7	W10223154		Cabinet (white)   (Replaces: W10183827)				$ 354.38
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	8578931		Window, Outer Door				$ 164.08
13	WPW10547292		Pulley Assembly   (Replaces: 8547160)			Immediately	$ 43.98
14	W10201446		Bracket-gas Pipe		Appelez-nous	-
15	8578560		Plug-hole				$ 95.94
16	8571357		Door, Inner (white/silver)				$ 143.15
16	W10307042		Door, Inner (black)		Appelez-nous	-
17	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
18	18849		Pad, Top Hinge (2)				$ 21.15
19	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 16.34
20	W10850756		Screw   (Replaces: 8533974)				$ 8.20
21	W10111912		Assembly, Hinge (2) (black)		Appelez-nous	-
21	WP8565018		Assembly, Hinge (2) (white)   (Replaces: 8579717)				$ 115.34
21	W10252472		Assembly, Hinge (2) (silver)				$ 62.91
22	WP3400805		Screw   (Replaces: 3400805)				$ 7.55
23	W10307048		Door, Outer (black)		Appelez-nous	-
23	W10307050		Door, Outer (silver)				$ 51.68
23	8571365		Door, Outer (white)				$ 70.67
24	W10252446		Panel, Front (silver)		Appelez-nous	-
24	W10111883		Panel, Front (white)		Appelez-nous	-
24	W10194731		Panel, Front (black)		Appelez-nous	-
25	8558846		Glass, Inner Door				$ 120.50
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
27	WPW10448896		Motor, Assembly 60 Hz.   (Replaces: 8547170)			Immediately	$ 343.09
28	8558830		Panel, Rear				$ 139.44
29	8544743		Pulley, Blower				$ 74.26
30	WP8547157		Belt, Drive   (Replaces: 8547157)			Immediately	$ 65.46
31	W10076050		Seal, Window				$ 121.65
32	8547158		Bracket, Motor				$ 65.31
33	WPW10111905		Catch, Door Assembly   (Replaces: W10111905)			Immediately	$ 7.59
34	777849		Screw, 6-20 X 1 1/4   (Replaces: W10002600)				$ 7.36
35	WP8568303		Locator, Snap Down (2)   (Replaces: 8568303)				$ 7.94
36	WPW10157932		Foam, Cabinet   (Replaces: W10157932)			Immediately	$ 8.45
37	W10295405		Assembly, Strike & Plate   (Replaces: W10111906)				$ 115.09
38	W10144494		Plug, Hole				$ 35.14
39	W10239307		Seal, Door   (Replaces: W10221653)				$ 141.27
40	WP488627		Screw, 8-18 X 18   (Replaces: 342055)				$ 8.11
41	WPW10201785		Door Switch Assembly   (Replaces: W10201785)				$ 88.23
42	WP8547171		Pulley, Drum Motor   (Replaces: 8547171)				$ 149.66
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 7.60
44	W10044490		Seal, Front Panel				$ 34.05
45	8573008		Plug, Front Panel (black)		Appelez-nous	-
45	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 16.50
45	W10249704		Plug, Front Panel (silver)		Appelez-nous	-
46	WP8066217		Hinge Top   (Replaces: 238088)				$ 8.21
47	WP308499		Nut   (Replaces: 308499)				$ 7.30
48	W10123956		Sound Panel		Appelez-nous	-
NI	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
