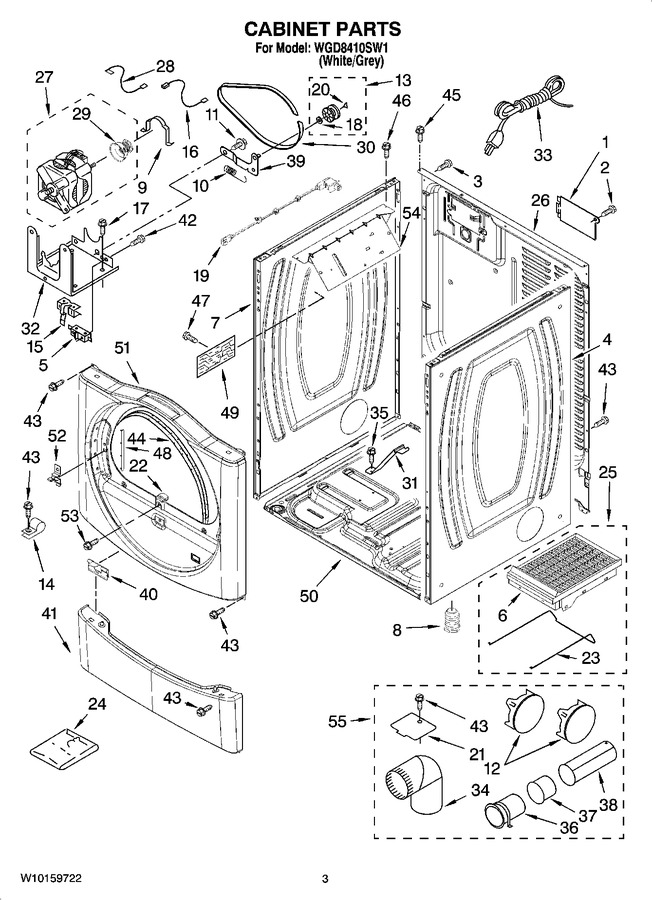

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.43
3	W10850756		Screw, Ground   (Replaces: 8533974)				$ 7.38
4	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 315.52
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 52.57
6	8212450A		Dry Rack (top)   (Replaces: 8521959)			Immediately	$ 79.37
7	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 315.52
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 23.22
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 7.76
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.75
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 29.26
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 31.29
16	3394081		Wire, Belt Switch				$ 37.57
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 7.52
19	8574875		Switch, Assembly Door				$ 119.00
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.71
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 8.47
22	8580015		Ramp, Door				$ 79.42
23	8521961		Dry Rack Support		Appelez-nous	-
24	8572546		Kit, Stack Assembly			Immediately	$ 76.17
25	8212450A		Assembly, (dry Rack)   (Replaces: 8563738)			Immediately	$ 79.37
26	8565059		Panel, Rear				$ 244.90
27	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 222.14
28	3398948		Wire, Jumper (broken Belt Switch)				$ 58.19
29	W10837625		Pulley, 60 Hz.   (Replaces: 8578220)			Immediately	$ 11.49
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 29.53
31	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 126.24
33	W11628810		Cord, Power   (Replaces: 3401401)				$ 91.71
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 25.34
35	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.80
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 86.36
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 74.61
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 83.92
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 32.20
40	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 19.95
41	WP8540621		Toe, Panel   (Replaces: 8540621)				$ 170.44
42	WP98129		Screw, 6/20 X 1 1/16   (Replaces: 98129)				$ 7.36
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
46	W11693756		Screw, 8-18 X 1/16   (Replaces: 688983)			Immediately	$ 13.28
47	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
48	8565043		Plug-strip Front Panel				$ 87.56
49	W10111606		Control Board				$ 302.46
50	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 328.82
51	8580257		Front Panel (includes Illus. 44)				$ 124.76
52	WP8565122		Strike, Door (1)   (Replaces: 8565122)			Immediately	$ 7.79
53	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
54	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 161.72
55	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.75
