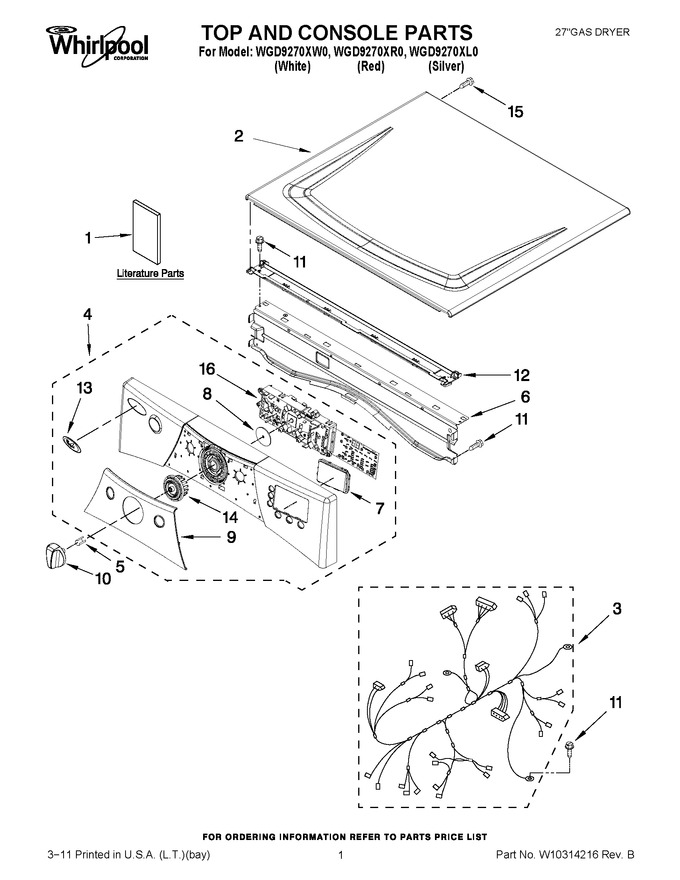

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10293937		Use & Care Guide		Appelez-nous	-
1	W10294025		Tech Sheet		Appelez-nous	-
1	W10240584		Installation Instructions		Appelez-nous	-
2	WPW10336080		Top (white)   (Replaces: W10336080)				$ 331.99
2	W10336090		Top (red)				$ 121.81
2	WPW10336091		Top (silver)   (Replaces: W10336091)				$ 324.93
3	W10278758		Harness, Main		Appelez-nous	-
4	WPW10215463		Panel, Console (red)   (Replaces: W10215463)				$ 358.85
4	W10215464		Panel, Console (silver)		Appelez-nous	-
4	W10215462		Panel, Console (white)		Appelez-nous	-
5	W10153920		Spring, Knob		Appelez-nous	-
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	W10212742		Window, Display				$ 22.30
8	8572039		Seal, User Interface		Appelez-nous	-
9	W10215468		Cover-center (silver)		Appelez-nous	-
9	W10215469		Cover, Center (red)		Appelez-nous	-
9	W10215470		Cover, Center (white)		Appelez-nous	-
10	WPW10247262		Assembly, Knob (red/silver Models)   (Replaces: W10247262)				$ 56.36
10	WPW10215781		Assembly, Knob (white)   (Replaces: W10215781)				$ 59.12
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WPW10266747		Channel, Water   (Replaces: W10266747)				$ 73.96
13	W10117943		Badge Assembly		Appelez-nous	-
14	W10237301		Light Guide, Cycle		Appelez-nous	-
15	3400238		Screw, 2-28 X 1/2				$ 12.03
16	W10215460		Assembly, User Interface		Appelez-nous	-
