SELECT A DIAGRAM

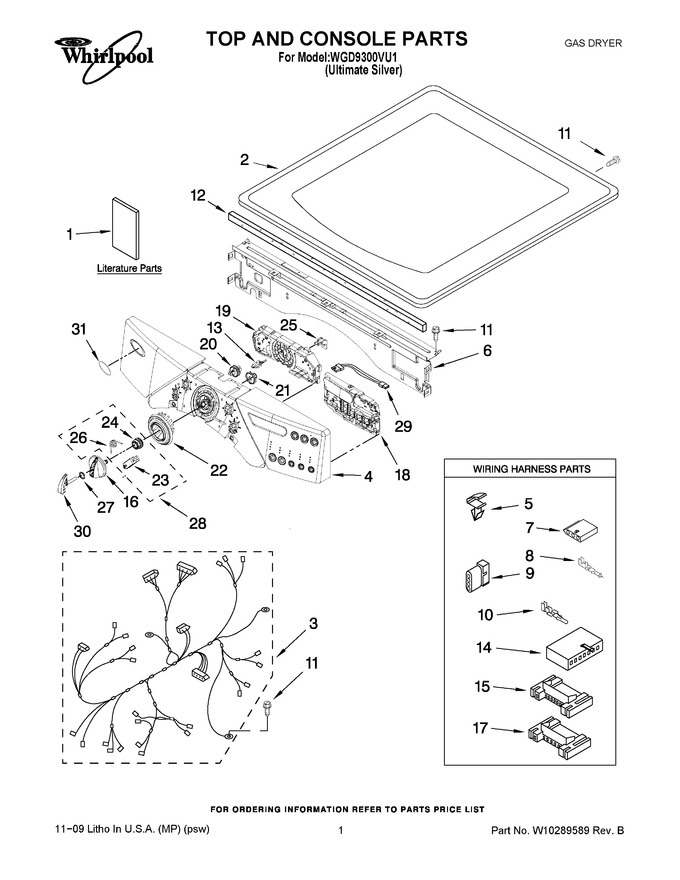

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258369		Tech Sheet		Appelez-nous	-
1	W10255469		Installation Instructions		Appelez-nous	-
1	W10224575		Use & Care Guide		Appelez-nous	-
2	W10114785		Top				$ 122.15
3	W10111062		Harness, Main		Appelez-nous	-
4	W10246732		Panel, Console Assembly				$ 489.24
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
6	W10215656		Bracket, Console (includes Item 12)				$ 72.06
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 8.05
9	3936144		Plug, Terminal				$ 21.22
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	W10112267		Foam-seal Control Bracket				$ 97.53
13	W10012480		Array-power   (Replaces: W10030070)				$ 17.15
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector (motor)			Immediately	$ 54.45
16	N/P		Knob Base (not Servicable)		Appelez-nous	-
17	2203186		Connector, 5-circuit				$ 13.18
18	W10280098		User-interface (right)		Appelez-nous	-
19	W10279686		User Interface (center)		Appelez-nous	-
20	W10012430		Encoder-wheel				$ 21.85
21	W10012440		Retainer-snap				$ 12.36
22	W10012410		Knob, Light Ring (includes: Illus. 21 )				$ 21.84
23	W10012810		Rast, Wheel Assembly (service Only With Illus. 28 )		Appelez-nous	-
24	W10012450		Detent Wheel (service Only With Illus. 28)		Appelez-nous	-
25	W10112268		Clip-harness (4)		Appelez-nous	-
26	W10012820		Knob, Spring (2) (service Only With Illus. 28 )		Appelez-nous	-
27	W10012830		O-ring, Knob		Appelez-nous	-
28	280230		Encoder-wheel Kit (includes Illus: 23, 24 & 26 )				$ 141.57
29	W10242906		Harness, Communication				$ 170.16
30	W10029940		Cap Shell-knob		Appelez-nous	-
31	W10117943		Badge		Appelez-nous	-
