SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly

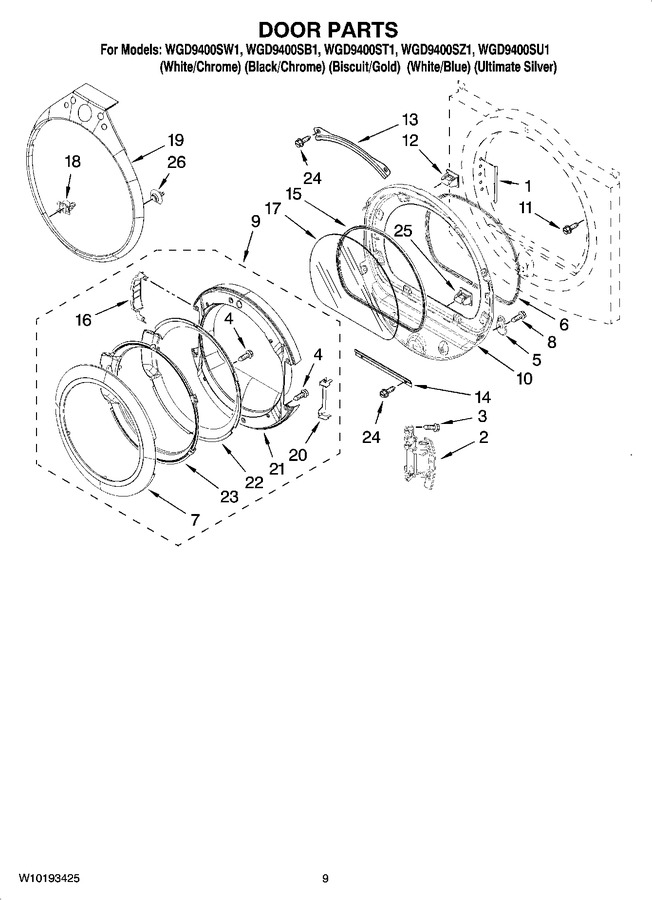

05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10085230 | Label, Hinge Hole (silver) (Replaces: W10085230) |
|
$ 22.95 | |||||
| 1 | W10085210 | Label, Hinge Hole (white) |
|
$ 85.03 | |||||
| 2 | WPW10310366 | Door Hinge Assembly (Replaces: W10139920) |
|
Immediately | $ 258.42 | ||||
| 3 | WPW10159996 | Screw, 10-24 X 3/64 (Replaces: W10159996) |
|
$ 8.52 | |||||
| 4 | W10850046 | Screw, 8-18 X 5/8 (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 5 | W10048910 | Screw-plug |
|
- | |||||
| 6 | WPW10139457 | Seal-door (Replaces: W10139457) |
|
$ 134.28 | |||||
| 7 | 8579496 | Handle, Ring & Pad Assembly (white/blue) |
|
- | |||||
| 7 | 8579503 | Handle, Ring & Pad Assembly (gold) |
|
$ 134.81 | |||||
| 7 | 8579502 | Handle, Ring & Pad Assembly (silver) |
|
- | |||||
| 8 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 9 | W10180116 | Door Assembly (outer) (gold) |
|
- | |||||
| 9 | W10180115 | Door Assembly (outer) (silver) |
|
$ 228.52 | |||||
| 9 | W10180112 | Door Assembly (outer) (white/blue) |
|
- | |||||
| 10 | 8578229 | Door Assembly (inner) (includes Illus. 12 & 27) |
|
$ 75.57 | |||||
| 11 | WP355515 | Screw, 8-18 X 11/16 (Replaces: 355515) |
|
$ 8.48 | |||||
| 12 | 279570 | Door Catch Assembly (upper) (Replaces: 3398175) |
|
Immediately | $ 8.89 | ||||
| 13 | 8519356 | Retainer-window (upper) |
|
- | |||||
| 14 | W10822054 | Retainer-window (lower) (Replaces: 8519354) |
|
Immediately | $ 18.01 | ||||
| 15 | 8579662 | Seal-window |
|
$ 106.25 | |||||
| 16 | W10181197 | Cover Hinge (stationary (rh)) |
|
$ 42.37 | |||||
| 16 | W10180119 | Cover-hinge, Stationary (lh) |
|
$ 35.43 | |||||
| 17 | 8566254 | Window |
|
$ 127.75 | |||||
| 18 | WPW10129065 | Clip-trim (8) (Replaces: W10129065) |
|
Immediately | $ 12.24 | ||||
| 19 | W10181522 | Tear-drop Trim & Clip Assembly (white) |
|
- | |||||
| 19 | W10181527 | Tear-drop Trim & Clip Assembly (black) |
|
- | |||||
| 19 | W10181528 | Tear-drop Trim & Clip Assembly (biscuit) |
|
- | |||||
| 19 | W10181524 | Tear-drop Trim & Clip Assembly (white/blue) |
|
- | |||||
| 19 | W10181529 | Tear-drop Trim & Clip Assembly (ultimate Silver) |
|
- | |||||
| 20 | W10180120 | Door Shield |
|
$ 50.86 | |||||
| 21 | W10180118 | Door, Intermediate |
|
$ 214.39 | |||||
| 22 | W10180117 | Door Mask |
|
$ 92.85 | |||||
| 23 | 8578155 | Door Screen |
|
- | |||||
| 24 | WP3373329 | Screw, 10-16 X 3/8 (Replaces: 3393258) |
|
$ 8.52 | |||||
| 25 | 279570 | Door Catch Assembly (lower) (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 26 | W10059060 | Clip-trim (6) |
|
- | |||||
| 8212605 | Paint, Touch-up (1/2oz.) (ultimate Silver) |
|
$ 16.01 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 4392067 | Kit, Dryer Repair (Replaces: 80047) |
|
Immediately | $ 62.25 | |||||
| 8212450A | Dry Rack Assembly (Replaces: 8521957) |
|
Immediately | $ 88.19 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 8541503 | Kit, Stack Assembly |
|
Immediately | $ 43.18 | |||||
| 8579666ARP | Kit, Door Reversing (Replaces: 8579666A) |
|
$ 64.73 | ||||||
| 8529894 | Kit, Hold Down |
|
- | ||||||
| 786032 | Paint, Bulk (1 Qt.) (black (uncut)) |
|
- |
