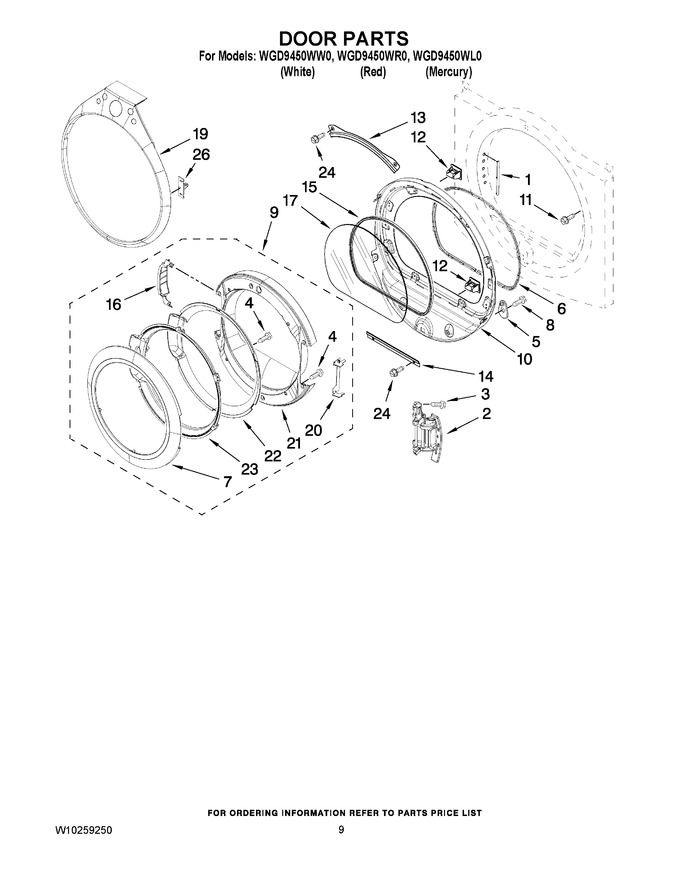

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10085210		Label, Hinge Hole				$ 85.03
2	WPW10310366		Door Hinge Assembly   (Replaces: W10139920)			Immediately	$ 258.42
3	WPW10159996		Screw, 10-24 X 3/64   (Replaces: W10159996)				$ 8.52
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	W10048910		Screw-plug		Appelez-nous	-
6	WPW10139457		Seal-door   (Replaces: W10139457)				$ 134.28
7	8579502		Handle, Door (ring Assembly) (includes Item: 7)		Appelez-nous	-
8	3400224		Screw, 10-16 X 1/2				$ 5.27
9	W10180115		Door Assembly (outer)				$ 228.52
10	8578229		Door Assembly (inner) (includes Illus. 12)				$ 75.57
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	279570		Door Catch Assembly (2)   (Replaces: 690081)			Immediately	$ 8.89
13	8519356		Retainer-window (upper)		Appelez-nous	-
14	W10822054		Retainer-window (lower)   (Replaces: 8519354)			Immediately	$ 18.01
15	8579662		Seal-window				$ 106.25
16	W10181197		Cover Hinge (stationary (rh))				$ 42.37
16	W10180119		Cover-hinge, Stationary (lh)				$ 35.43
17	8566254		Window				$ 127.75
19	W10246598		Tear-drop Trim & Clip Assembly (white)		Appelez-nous	-
19	W10249741		Tear-drop Trim & Clip Assembly (mercury)				$ 146.93
19	W10236937		Tear-drop Trim & Clip Assembly (red)				$ 160.37
20	W10180120		Door Shield				$ 50.86
21	W10180118		Door, Intermediate				$ 214.39
22	W10180117		Door Mask				$ 92.85
23	8578155		Door Screen		Appelez-nous	-
24	WP3373329		Screw, 10-16 X 3/64   (Replaces: 3393258)				$ 8.52
26	WPW10129065		Clip-trim (8)   (Replaces: W10129065)			Immediately	$ 12.24
