SELECT A DIAGRAM

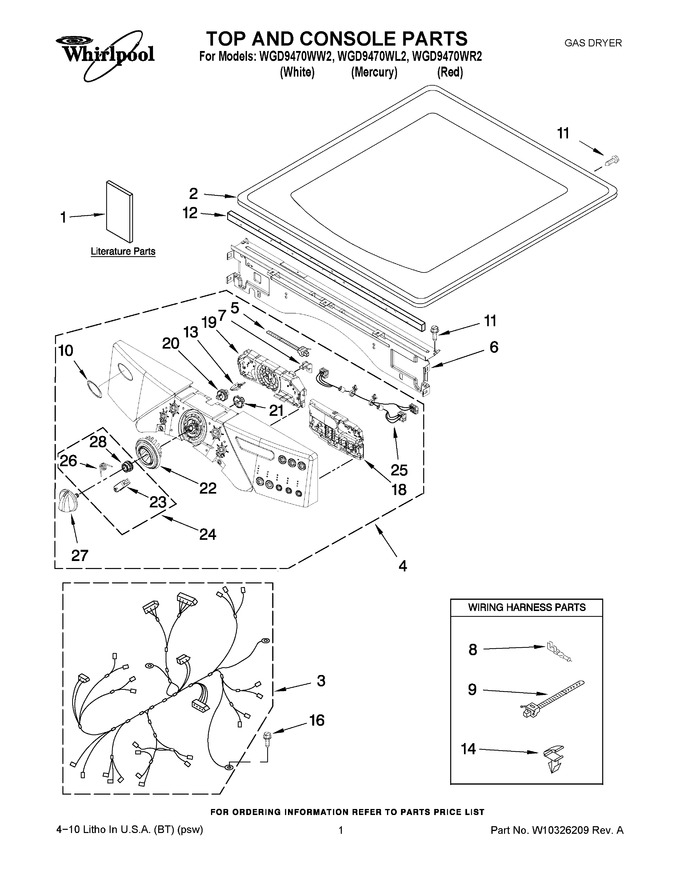

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10244607		Use & Care Guide		Appelez-nous	-
1	W10255469		Installation Instructions		Appelez-nous	-
1	W10298850		Tech Sheet		Appelez-nous	-
2	3980634		Top (white)		Appelez-nous	-
2	W10249739		Top (mercury)				$ 127.37
2	W10249738		Top (red)				$ 131.95
3	W10111069		Harness, Main				$ 273.58
4	W10255229		Panel, Console Assembly (white)				$ 393.71
4	W10255230		Panel, Console Assembly (mercury)				$ 518.94
4	W10255231		Panel, Console Assembly (red)		Appelez-nous	-
5	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
6	W10215656		Bracket, Console (includes Item 12)				$ 72.06
7	W10112268		Clip-harness (4)		Appelez-nous	-
8	WP94614		Terminal   (Replaces: 94614)				$ 8.05
9	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
10	W10117943		Badge		Appelez-nous	-
11	WP489463		Screw, 8-18 X 1/2   (Replaces: 489463)				$ 8.25
12	W10112267		Foam-seal				$ 97.53
13	W10012480		Array-power   (Replaces: W10030070)				$ 17.15
14	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
16	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
18	W10279773		User Interface (right)				$ 262.92
19	W10279709		User-interface Center (includes Item 13)				$ 232.06
20	W10012430		Encoder-wheel				$ 21.85
21	W10012440		Retainer-snap				$ 12.36
22	W10250089		Knob, Light Ring (includes, Item. 21 )				$ 13.46
23	W10006660		Rast, Wheel Assy. (service Only With Item. 24)		Appelez-nous	-
24	280230		Encoder Wheel Kit (includes Items 23 & 26)				$ 141.57
25	W10242906		Harness, Communication				$ 170.16
26	W10012820		Knob, Spring (service Only With Item. 24)		Appelez-nous	-
27	W10190685		Knob, Timer (includes: Item. 21)				$ 68.80
28	W10133763		Detent Wheel (service Only With Item. 24 )		Appelez-nous	-
