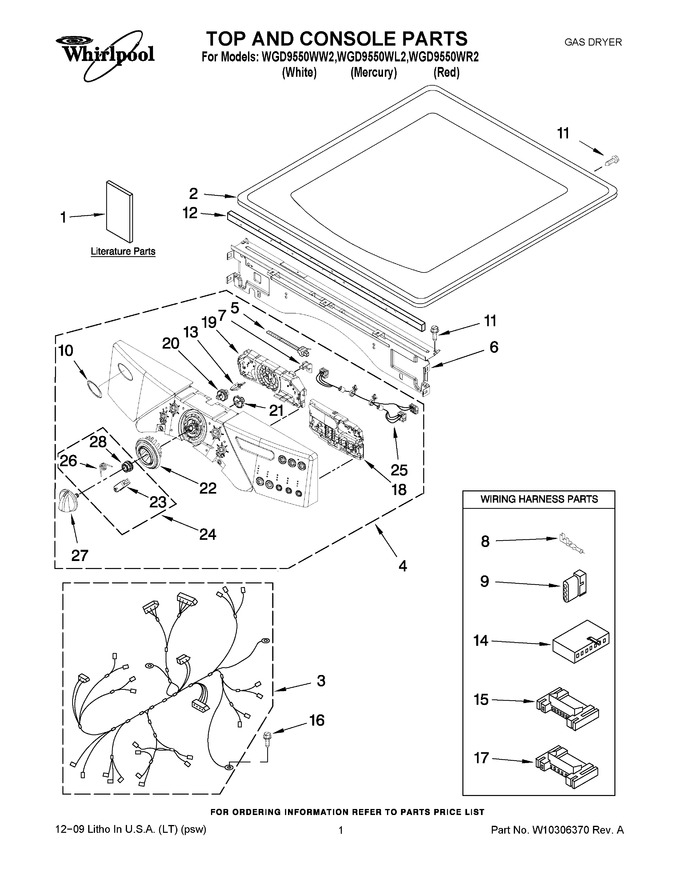

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10293911 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10244607 | Use & Care Guide |
|
- | |||||
| 1 | W10255469 | Installation Instructions |
|
- | |||||
| 1 | W10258369 | Tech Sheet |
|
- | |||||
| 2 | W10249738 | Top (red) |
|
$ 131.95 | |||||
| 2 | 3980634 | Top (white) |
|
- | |||||
| 2 | W10249739 | Top (mercury) |
|
$ 127.37 | |||||
| 3 | W10111069 | Harness, Main |
|
$ 273.58 | |||||
| 4 | W10255230 | Panel, Console (include Items, 5,7,10,13,18,19, 20,21,22,24,25 & 27 ) (mercury) |
|
$ 518.94 | |||||
| 4 | W10255229 | Panel, Console (include Items, 5,7,10,13,18,19, 20,21,22,24,25 & 27 ) (white) |
|
$ 393.71 | |||||
| 4 | W10255231 | Panel, Console (include Items, 5,7,10,13,18,19, 20,21,22,24,25 & 27 ) (red) |
|
- | |||||
| 5 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 6 | W10215656 | Bracket, Console (include, Item. 12) |
|
$ 72.06 | |||||
| 7 | W10112268 | Clip-harness (4) |
|
- | |||||
| 8 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 10 | W10117943 | Badge |
|
- | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10112267 | Foam-seal |
|
$ 97.53 | |||||
| 13 | W10012480 | Array-power (Replaces: W10030070) |
|
$ 17.15 | |||||
| 14 | 3936150 | Connector, 7-circuit |
|
$ 77.60 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 17 | 2203186 | Connector, 5-circuit |
|
$ 13.18 | |||||
| 18 | W10279773 | User Interface (right) |
|
$ 262.92 | |||||
| 19 | W10279709 | User Interface (center) (include Item, 13. ) |
|
$ 232.06 | |||||
| 20 | W10012430 | Encoder-wheel |
|
$ 21.85 | |||||
| 21 | W10012440 | Retainer-snap |
|
$ 12.36 | |||||
| 22 | W10250089 | Knob, Light Ring (include Item, 21. ) |
|
$ 13.46 | |||||
| 23 | W10012810 | Rast, Wheel Assy. (service Only With Item. 24) |
|
- | |||||
| 24 | W10012480 | Encoder Wheel Kit (include, Item. 23 & 26 ) |
|
$ 17.15 | |||||
| 25 | W10242906 | Harness, Communication |
|
$ 170.16 | |||||
| 26 | W10012820 | Knob, Spring (service Only With Item. 24) |
|
- | |||||
| 27 | W10190685 | Knob, Timer (include, Item. 21) |
|
$ 68.80 | |||||
| 28 | W10012460 | Detent Wheel (service Only With Item. 24 ) |
|
- |
