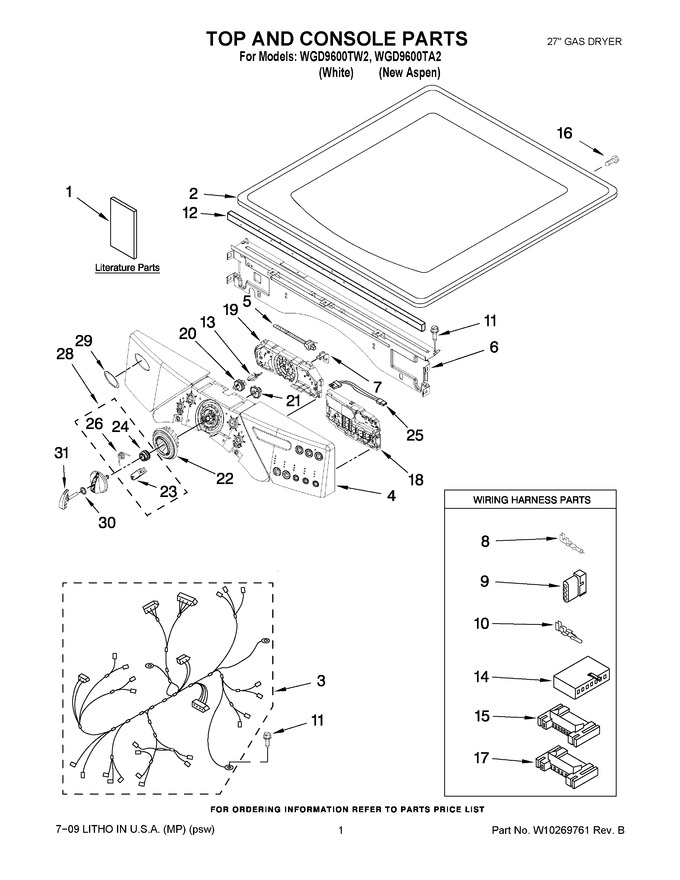

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10224575 | Use & Care Guide |
|
- | |||||
| 1 | W10258369 | Tech Sheet |
|
- | |||||
| 1 | W10255469 | Installation Instructions |
|
- | |||||
| 2 | W10140290 | Top (new Aspen) |
|
$ 122.73 | |||||
| 2 | 3980634 | Top (white) |
|
- | |||||
| 3 | W10111069 | Harness, Main |
|
$ 273.58 | |||||
| 4 | W10246738 | Panel, Console (includes Illus: 20,21,22,28,29) (new Aspen) |
|
- | |||||
| 4 | W10246742 | Panel, Console (includes Illus: 20,21,22,28,29) (white) |
|
$ 340.03 | |||||
| 5 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 6 | W10215656 | Bracket, Console (includes No.12) |
|
$ 72.06 | |||||
| 7 | W10112268 | Clip-harness (4) |
|
- | |||||
| 8 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10112267 | Foam-seal |
|
$ 97.53 | |||||
| 13 | W10012480 | Array-power (Replaces: W10030070) |
|
$ 17.15 | |||||
| 14 | 3936150 | Connector, 7-circuit |
|
$ 77.60 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | W11808444 | Screw, 8-32 X .313 (Replaces: 98139) |
|
- | |||||
| 17 | 2203186 | Connector, 5-circuit |
|
$ 13.18 | |||||
| 18 | WPW10279771 | User-interface (right) (Replaces: W10279771) |
|
$ 313.89 | |||||
| 19 | W10279709 | User-interface Center |
|
$ 232.06 | |||||
| 20 | W10012430 | Encoder-wheel |
|
$ 21.85 | |||||
| 21 | W10012440 | Retainer-snap |
|
$ 12.36 | |||||
| 22 | W10012410 | Knob, Light Ring |
|
$ 21.84 | |||||
| 23 | W10012810 | Rast, Wheel Assy. (service Only With Item. 28) |
|
- | |||||
| 24 | W10012460 | Detent Wheel (service Only With Item. 28) |
|
- | |||||
| 25 | W10242906 | Harness, Communication |
|
$ 170.16 | |||||
| 26 | W10012820 | Knob, Spring (service Only With Item 28) |
|
- | |||||
| 28 | W10012480 | Encoder, Wheel Kit (includes Items: 23, 24 & 26 ) |
|
$ 17.15 | |||||
| 29 | W10117943 | Badge |
|
- | |||||
| 30 | W10012830 | Knob, O-ring |
|
- | |||||
| 31 | W10029940 | Knob, Cap |
|
- |
