SELECT A DIAGRAM
01 - Top And Console Parts

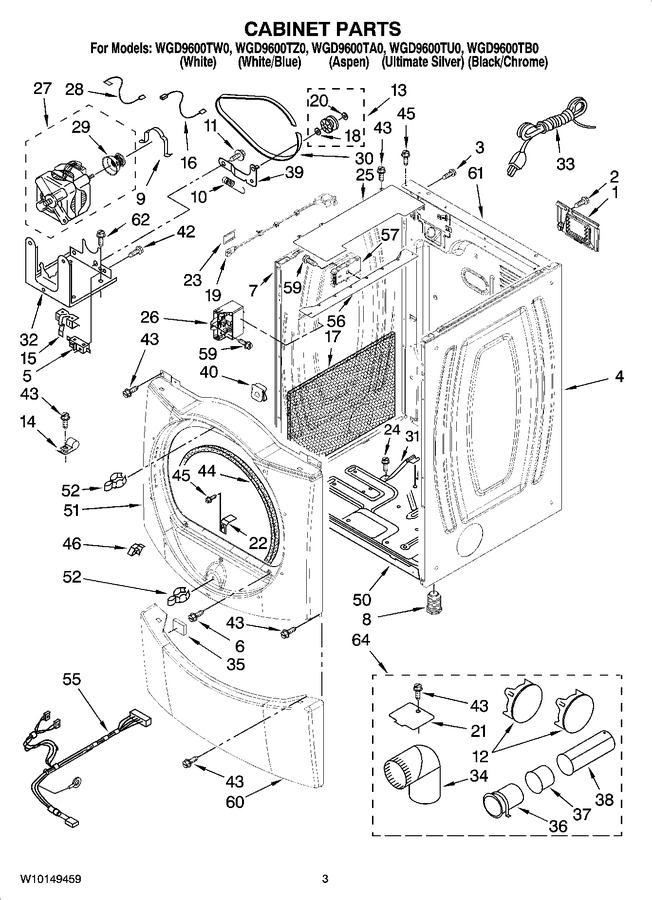

02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W10850756 | Screw, 10-32 X 5/8 (ground) (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W10139003 | Panel, Side (r.h.) (white) |
|
- | |||||
| 4 | W10139013 | Panel, Side (r.h.) (aspen) |
|
- | |||||
| 4 | W10139009 | Panel, Side (r.h.) (ultimate Silver) |
|
- | |||||
| 4 | W10139010 | Panel, Side (r.h.) (black/chrome) |
|
- | |||||
| 4 | W10095480 | Panel, Side (r.h.) (ultimate Silver) |
|
- | |||||
| 5 | 279782 | Switch, Broken Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 6 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 7 | W10138996 | Panel, Side (l.h.) (black/chrome) |
|
- | |||||
| 7 | W10138999 | Panel, Side (l.h.) (aspen) |
|
- | |||||
| 7 | W10138995 | Panel, Side (l.h.) (ultimate Silver) |
|
- | |||||
| 7 | W10138989 | Panel, Side (l.h.) (white) |
|
- | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W10470674 | Plug, Multivent (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 12 | WPW10404617 | Plug, Multivent (aspen) (Replaces: W10136987) |
|
$ 75.58 | |||||
| 12 | W10470674 | Plug, Multivent (black/chrome) (Replaces: 3388309) |
|
Immediately | $ 76.65 | ||||
| 12 | WPW10404617 | Plug, Multivent (ultimate Silver) (Replaces: 8579117) |
|
$ 75.58 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | WP8066120 | Lever, Snap Switch (Replaces: 8066120) |
|
Immediately | $ 34.77 | ||||
| 16 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 17 | W10128772 | Sound Panel |
|
- | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 8.36 | ||||
| 19 | W10128087 | Assembly, Door Switch |
|
$ 95.53 | |||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 21 | WPW10354249 | Cover-plate (Replaces: 8066115) |
|
$ 9.41 | |||||
| 22 | 8529053 | Ramp, Door |
|
$ 51.37 | |||||
| 23 | W10118614 | Seal, Door Switch |
|
- | |||||
| 24 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 25 | W10118470 | Cover, Control Bracket |
|
- | |||||
| 26 | 3407228 | Power Cube |
|
$ 128.68 | |||||
| 27 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 235.65 | ||||
| 28 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 64.66 | |||||
| 29 | W10837625 | Pulley, 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 140.27 | |||||
| 33 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 101.90 | |||||
| 34 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 35 | 3389682 | Space-toe Panel |
|
$ 9.23 | |||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | 62825 | Clip-s Type |
|
$ 8.11 | |||||
| 42 | WP98129 | Screw, 6/20 X 1 1/16 (Replaces: 98129) |
|
$ 8.18 | |||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 46 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 50 | 8519207 | Base, Cabinet |
|
- | |||||
| 51 | 8578940 | Front Panel (includes Illus. 44) (ultimate Silver) |
|
- | |||||
| 51 | 8578936 | Front Panel (includes Illus. 44) (black/chrome) |
|
- | |||||
| 51 | W10140574 | Front Panel (includes Item 44) (aspen) |
|
- | |||||
| 51 | 8578388 | Front Panel (includes Illus. 44) (white) |
|
$ 54.86 | |||||
| 52 | 279570 | Strike, Door(2) (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 55 | W10181464 | Harness, Digital Interface (Replaces: 8579736) |
|
- | |||||
| 56 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 179.69 | |||||
| 57 | W10141671 | Control Board |
|
$ 286.67 | |||||
| 59 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 60 | W10116271 | Toe, Panel (white) |
|
- | |||||
| 60 | W10116273 | Toe Panel (black/chrome) |
|
- | |||||
| 60 | W10116277 | Toe, Panel (ultimate Silver) |
|
- | |||||
| 60 | W10140572 | Toe Panel (aspen) |
|
- | |||||
| 61 | W10487430 | Panel, Rear (Replaces: W10116475) |
|
Immediately | $ 357.12 | ||||
| 62 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 64 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (ultimate Silver) (Replaces: 280171) |
|
Immediately | $ 76.65 | ||||
| 64 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| 64 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (black) (Replaces: 279820) |
|
Immediately | $ 76.65 | ||||
| 64 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (aspen) (Replaces: W10152954) |
|
Immediately | $ 76.65 |
