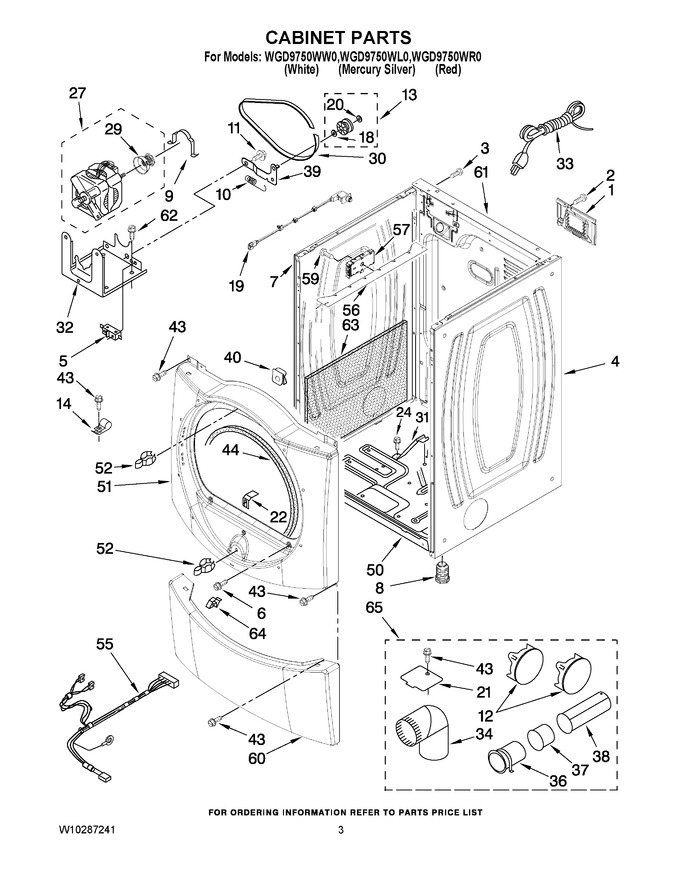

02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W10850756 | Screw, 10-32 X 5/8 (ground) (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W11233548 | Panel, Side (r.h.) (white) (Replaces: W10192446) |
|
$ 261.33 | |||||
| 4 | W10249725 | Panel, Side (r.h.) (silver) |
|
$ 154.49 | |||||
| 4 | W10249769 | Panel, Side (r.h.) (red) |
|
$ 121.14 | |||||
| 5 | WPW10411937 | Switch, Broken (belt) (Replaces: W10246525) |
|
Immediately | $ 36.06 | ||||
| 6 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 7 | W10249727 | Panel, Side (l.h.) (silver) |
|
$ 147.25 | |||||
| 7 | W10249768 | Panel, Side (l.h.) (red) |
|
$ 121.14 | |||||
| 7 | W11233548 | Panel, Side (l.h.) (white) (Replaces: W10192435) |
|
$ 261.33 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor (2) (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10151499) |
|
$ 75.58 | |||||
| 12 | WPW10404617 | Plug, Multivent (white) (Replaces: 49252) |
|
$ 75.58 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 8.36 | ||||
| 19 | W10128087 | Assembly, Door Switch |
|
$ 95.53 | |||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 21 | WPW10354249 | Cover-plate (Replaces: 8066115) |
|
$ 9.41 | |||||
| 22 | 8529053 | Ramp, Door Door Switch |
|
$ 51.37 | |||||
| 24 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 27 | 279787 | Motor Assembly 60 Hz. (broken Belt Switch) (Replaces: 8538263) |
|
Immediately | $ 235.65 | ||||
| 29 | W10837625 | Pulley, 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 32 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 33 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 101.90 | |||||
| 34 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | 62825 | Clip-s Type 6-20 X 1 1/16 |
|
$ 8.11 | |||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 50 | W10239098 | Base, Cabinet |
|
$ 148.45 | |||||
| 51 | W10180423 | Front Panel (includes Illus. 44) (white) |
|
$ 139.69 | |||||
| 51 | W10249726 | Front Panel (includes Illus. 44) (silver) |
|
$ 113.97 | |||||
| 51 | W10250670 | Front Panel (includes Illus. 44) (red) |
|
$ 139.96 | |||||
| 52 | 279570 | Strike, Door(2) (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 55 | W10242903 | Harness, Digital Interface |
|
- | |||||
| 56 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 179.69 | |||||
| 57 | W10256719 | Control Board |
|
$ 288.42 | |||||
| 59 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 60 | W10246269 | Toe-panel (white) |
|
$ 89.75 | |||||
| 60 | W10259606 | Toe, Panel (silver) |
|
$ 90.98 | |||||
| 60 | W10259607 | Toe, Panel (red) |
|
$ 90.73 | |||||
| 61 | W10487430 | Panel, Rear (Replaces: W10116475) |
|
Immediately | $ 357.12 | ||||
| 62 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 63 | W10123956 | Sound Panel |
|
- | |||||
| 64 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 65 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey) (Replaces: W10186596) |
|
Immediately | $ 76.65 | ||||
| 65 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
