Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9751480FW Outlet, Untimed Appelez-nous -
2 3191073 Breaker, 15 Amp Appelez-nous -
3 9752439 Base, Console Appelez-nous -
4 9752422FW End Cap (left) Appelez-nous -
4 9752423FW End Cap (right) Appelez-nous -
6 9753900 Panel, Control Appelez-nous -
7 6700G0001 Thermostat   (Replaces: 9750401) In-Stock Immediately $ 328.86

8 WP9752405FW Knobs, Control (5)   (Replaces: 9752405FW) Special Order $ 22.20

9 9780801 Light, Indicator (oven) Appelez-nous -
10 WP9750343 Lens, Indicator (3)   (Replaces: 9752589) In-Stock Immediately $ 6.00

11 313102 Light, Indicator (burners) (2) Special Order $ 66.48

12 9752442PW Trim Strip Appelez-nous -
13 3191100FW Switch, Oven Light Appelez-nous -
15 9781713 Timer Appelez-nous -
17 9781754 Bracket, Timer Appelez-nous -
19 WP9750641 Infinite Switch (2400w (2))   (Replaces: 9750641) In-Stock Immediately $ 103.02

19 WP9750638 Infinite Switch (1400w (2))   (Replaces: 9750638) In-Stock Immediately $ 113.89

26 3400853 Screw Appelez-nous -
27 WP3400882 Screw   (Replaces: 3400816) In-Stock Immediately $ 7.55

28 9780272 Screw Appelez-nous -
29 9780265 Screw Appelez-nous -
30 WP3400832 Screw   (Replaces: 3196168) In-Stock Immediately $ 8.18


    View Diagram in Separate Window     Print Icon   Print Part List

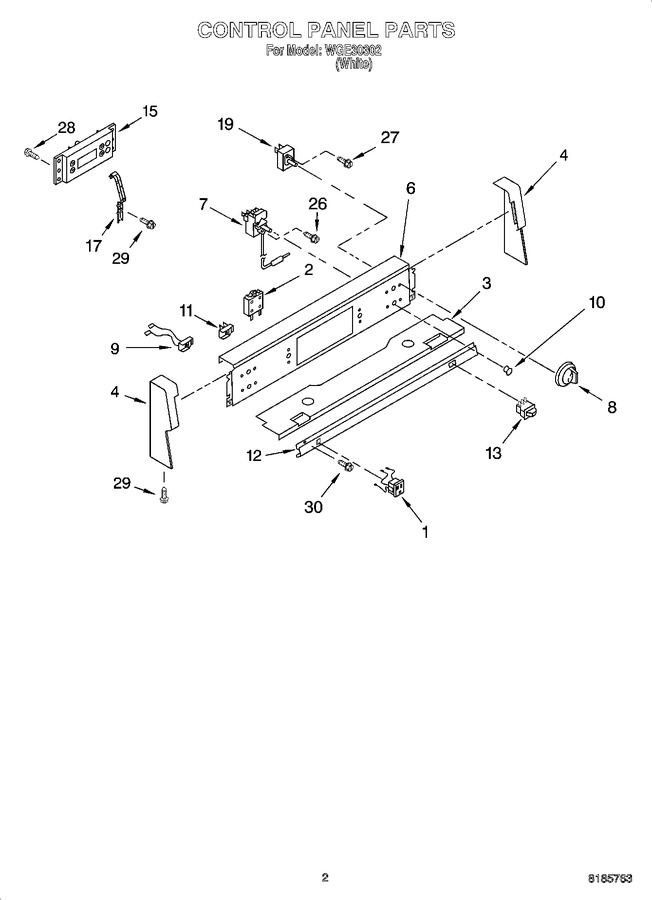

Diagram for WGE30302
