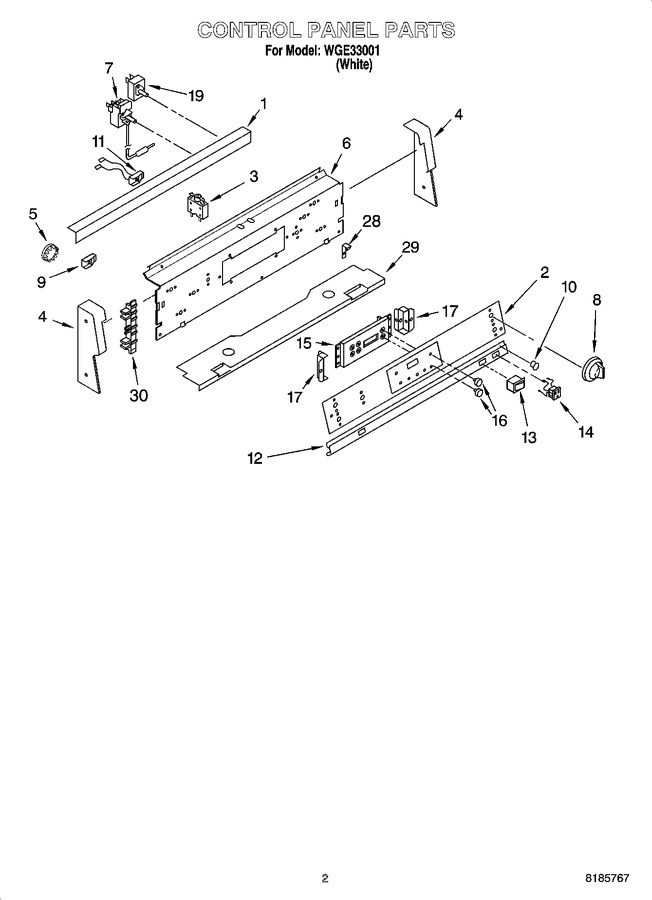

02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752431PB		Cover, Lamp		Appelez-nous	-
2	9753354		Console-glass (control Panel)		Appelez-nous	-
3	3191072		Breaker, 15 Amp		Appelez-nous	-
4	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
4	9752423FB		End Cap (right)		Appelez-nous	-
4	9752422FB		End Cap (left)		Appelez-nous	-
5	9780577		Button, Plug (8 Mm)		Appelez-nous	-
5	9780578		Button, Plug (13.0 Mm)		Appelez-nous	-
6	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
6	9781695		Panel, Control		Appelez-nous	-
7	6700G0001		Thermostat   (Replaces: 9750402)			Immediately	$ 328.86
8	9752405FB		Knobs, Control (5)				$ 17.20
9	313102		Light, Indicator (burners) (2)				$ 66.48
10	WP9750343		Lens, Light Module (oven)   (Replaces: 9752589)			Immediately	$ 6.00
11	9780801		Light Module (oven)		Appelez-nous	-
12	9752442PB		Trim Strip		Appelez-nous	-
13	3191100FB		Switch, Oven Light		Appelez-nous	-
14	9751480FB		Outlet, Untimed		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
15	9781717		Oven Control (timer Assembly)		Appelez-nous	-
15	9752854		Spacer, (2)		Appelez-nous	-
16	9781954FB		Button, Timer (6)				$ 14.66
17	9780265		Screw, (4)		Appelez-nous	-
17	9753304		Bracket, Timer (2)		Appelez-nous	-
19	WP9750643		Infinite Switch (1400w (2))   (Replaces: 9750643)			Immediately	$ 145.12
19	3400853		Screw (2)		Appelez-nous	-
19	WP3400882		Screw (8)   (Replaces: 3400816)			Immediately	$ 7.55
19	WP9750646		Infinite Switch (2400w (2))   (Replaces: 9750646)			Immediately	$ 98.69
28	9780265		Screw (2) 10-16 X 3/8		Appelez-nous	-
28	9753017		Clip, Spring (2)		Appelez-nous	-
29	9780265		Screw, (3)		Appelez-nous	-
29	9752439		Base, Console		Appelez-nous	-
29	WP3400832		Screw (3)   (Replaces: 3196168)			Immediately	$ 8.18
30	9753076FB		Insert, Glass		Appelez-nous	-
