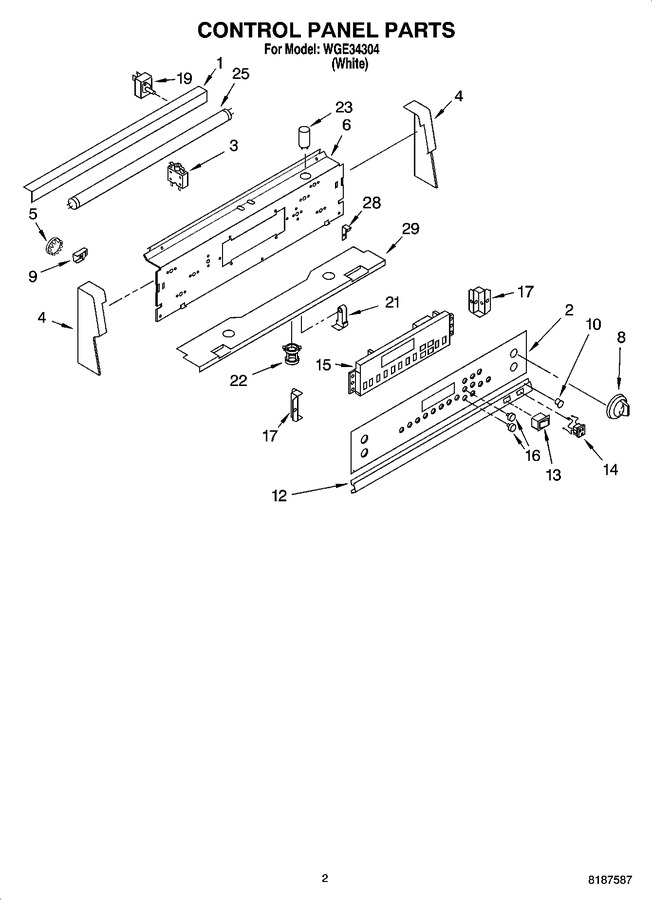

01 - Cooktop Parts
02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9752431PW | Cover, Lamp |
|
- | |||||
| 2 | 9752854 | Spacer |
|
- | |||||
| 2 | 9752799 | Console-glass (control Panel) |
|
- | |||||
| 3 | 3191072 | Breaker, 15amp. (2) |
|
- | |||||
| 4 | 9752423FW | End Cap (right) |
|
- | |||||
| 4 | 9752422FW | End Cap (left) |
|
- | |||||
| 4 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 5 | 9780578 | Button, Plug (13.0 Mm) |
|
- | |||||
| 5 | 9780577 | Button Plug (8 Mm (2)) |
|
- | |||||
| 6 | 9780852 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 6 | 3191070 | Panel, Control |
|
- | |||||
| 6 | 9752854 | Spacer |
|
- | |||||
| 8 | WP9752405FW | Knobs, Control (4) (Replaces: 9752405FW) |
|
$ 23.05 | |||||
| 9 | 313102 | Light, Indicator (burners) (2) |
|
$ 66.48 | |||||
| 10 | WP9750343 | Lens, Light Module (2) (oven) (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 12 | 9752443PW | Trim Strip |
|
- | |||||
| 13 | 3191102FW | Switch, Oven Light |
|
- | |||||
| 14 | 9751480FW | Outlet, Untimed |
|
- | |||||
| 15 | 9753076FW | Spacer, (2) |
|
- | |||||
| 15 | 9753632 | Oven Control (timer Assembly) |
|
- | |||||
| 15 | 9780265 | Screw (4) 10 X 3/8 |
|
- | |||||
| 16 | 9781954FW | Button, Timer (16) |
|
$ 16.39 | |||||
| 17 | 9753304 | Bracket, Timer (2) |
|
- | |||||
| 17 | 9780265 | Screw, (4) |
|
- | |||||
| 19 | WP9750643 | Infinite Switch (1400w (2)) (Replaces: 9750643) |
|
Immediately | $ 145.12 | ||||
| 19 | WP3400882 | Infinite Switch (screw (8)) (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 19 | WP9750646 | Infinite Switch (2400w (2)) (Replaces: 9750646) |
|
Immediately | $ 116.30 | ||||
| 21 | 9782259 | Receptacle, Light |
|
$ 33.60 | |||||
| 22 | 9750866 | Starter, Holder |
|
- | |||||
| 23 | 9781118 | Starter, Light |
|
- | |||||
| 25 | WP95292 | Light, Fluorescent (Replaces: 422581) |
|
Immediately | $ 134.94 | ||||
| 28 | 9753017 | Clip, Spring (2) |
|
- | |||||
| 28 | 9780265 | Screw (2) 10-16 X 3/8 |
|
- | |||||
| 29 | WP3400832 | Screw (3) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 29 | 9780265 | Screw, (3) |
|
- | |||||
| 29 | 9752439 | Base, Console |
|
- |
