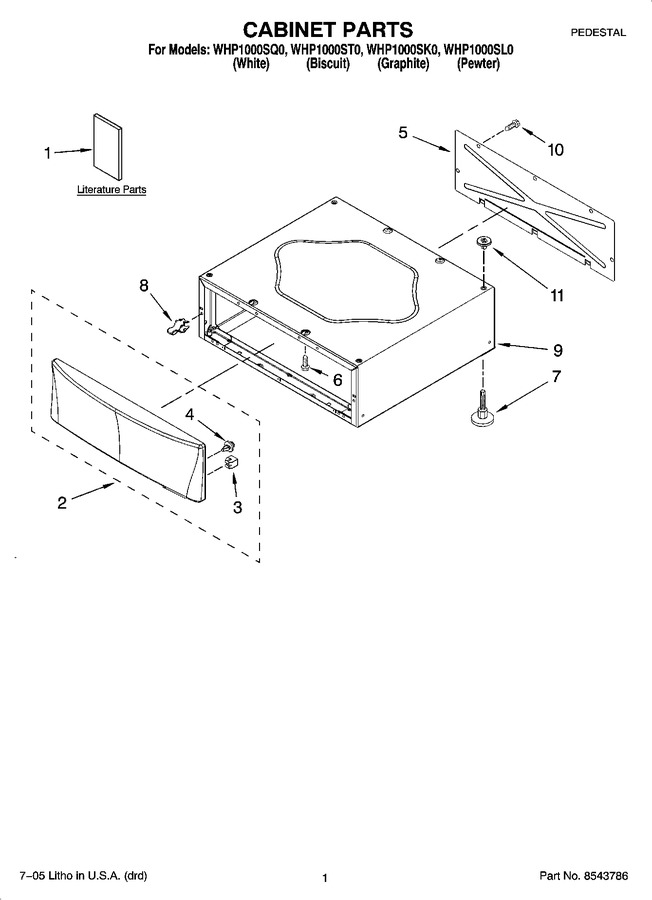

01 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8543738		Installation Instructions		Appelez-nous	-
1	854378		Parts List (6)		Appelez-nous	-
2	WPW10111644		Panel Asm, Front (white)   (Replaces: 8565621)				$ 204.76
2	8565622		Panel Asm, Front (biscuit)		Appelez-nous	-
2	8538001		Panel Asm, Front (graphite)		Appelez-nous	-
2	8537991		Panel Asm, Front (pewter)		Appelez-nous	-
3	279570		Catch, Front Panel (2)   (Replaces: 3398175)			Immediately	$ 8.89
4	8572266		Bumper, Front Panel (4)			Immediately	$ 11.73
5	8537974		Panel, Rear		Appelez-nous	-
6	WPW10346892		Screw, 12-14 X 5/8 (4)   (Replaces: 3400111)			Immediately	$ 7.55
7	WP8563585		Foot Assembly   (Replaces: 8563585)			Immediately	$ 14.76
8	279570		Strike, Front Panel (2)   (Replaces: 696144)			Immediately	$ 8.89
9	N/A		Cabinet (not Serviced)		Appelez-nous	-
10	WP1163283		Screw, 8-18 X 1/2 (5)   (Replaces: 3400842)				$ 7.55
11	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
11	8171357		Paint, Pressurized Spray (12 Oz.) (graphite)				$ 86.43
11	4396175		Paint, Pressurized Spray (12 Oz.) (pewter)		Appelez-nous	-
11	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
11	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
11	WP8537982		Pad (4)   (Replaces: 8537982)			Immediately	$ 8.69
11	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
11	80051		Paint, Touch-up (1/2oz.) (graphite)				$ 7.64
11	WP4396174		Paint, Touch-up (1/2oz.) (pewter)   (Replaces: 4396174)				$ 29.61
11	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
