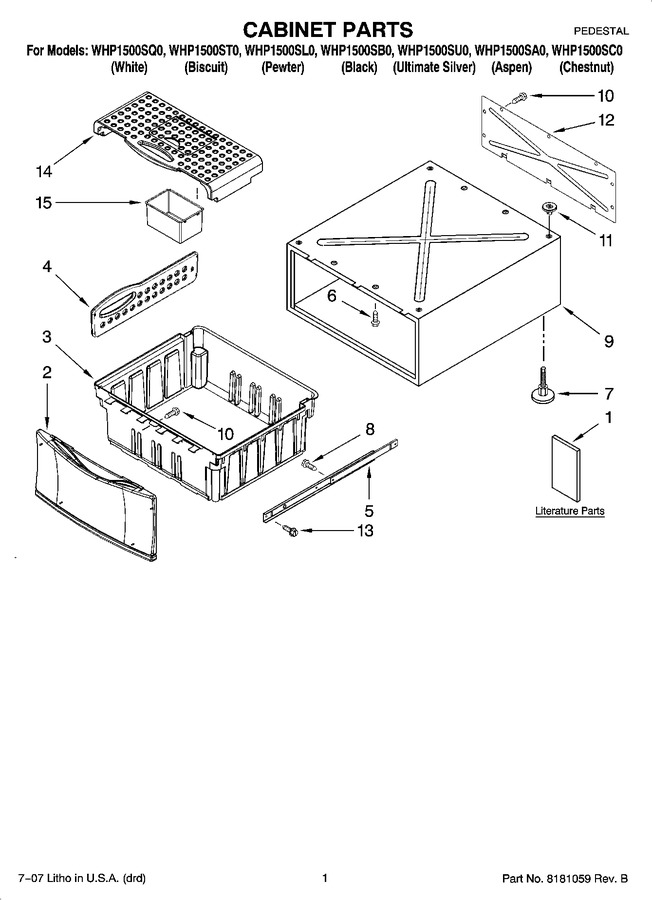

01 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10108880		Installation Instructions		Appelez-nous	-
2	W10138038		Drawer Front Assembly (aspen)		Appelez-nous	-
2	8538032		Drawer Front Assembly (white)		Appelez-nous	-
2	8578127		Drawer Front Assembly (biscuit)		Appelez-nous	-
2	8578129		Drawer Front Assembly (silver Calypso)		Appelez-nous	-
2	8577949		Drawer Front Assembly (ebony)		Appelez-nous	-
2	8578131		Drawer Front Assembly (ultimate Silver)		Appelez-nous	-
2	W10138044		Drawer Front Assembly (chestnut)		Appelez-nous	-
3	8538028		Drawer Bin		Appelez-nous	-
4	8565576		Divider, Drawer		Appelez-nous	-
5	8538030		Slide Assembly		Appelez-nous	-
6	WPW10346892		Screw   (Replaces: 3400111)			Immediately	$ 7.19
7	WP8563585		Foot Assembly   (Replaces: 8563585)			Immediately	$ 14.76
8	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3400639)				$ 6.95
10	WPW10213953		Screw, 8-18 X 1/2   (Replaces: 8533995)			Immediately	$ 7.19
11	WP8537982		Pad (4)   (Replaces: 8537982)			Immediately	$ 8.69
12	8537939		Panel, Rear		Appelez-nous	-
13	WP9740849		Screw, 8-18 X 7/16   (Replaces: 9740849)				$ 6.95
14	8577939		Shelf, U Assembly		Appelez-nous	-
15	8577942		Box, U Shelf				$ 69.27
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
	WP4396174		Paint, Touch-up (1/2oz.) (pewter)   (Replaces: 4396174)				$ 28.20
	8212605		Paint, Touch-up (1/2oz.) (ultimate Silver)				$ 16.01
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	4396175		Paint, Pressurized Spray (12 Oz.) (pewter)		Appelez-nous	-
	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
