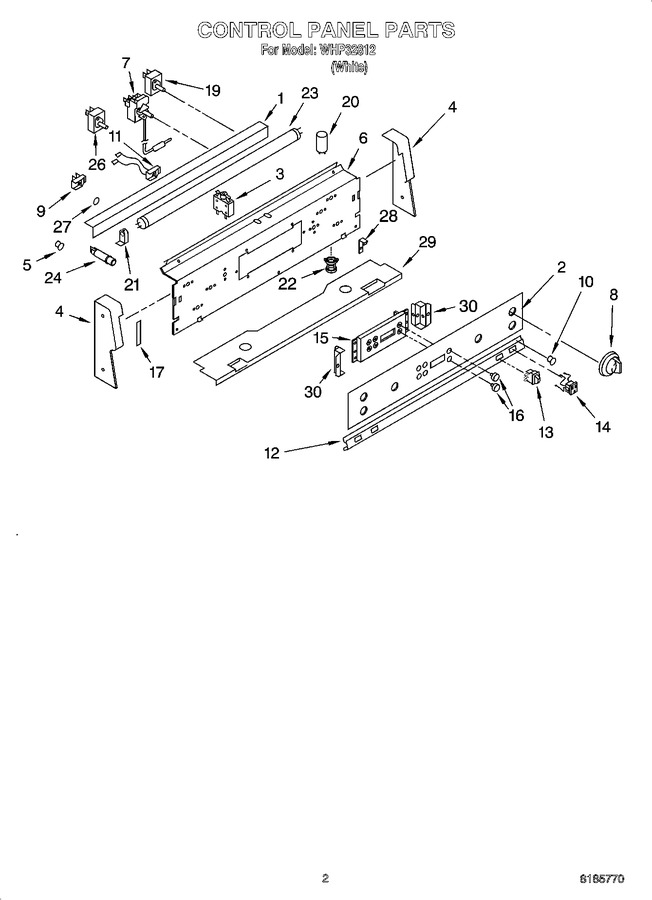

01 - Cooktop Parts
02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9752431PW | Lamp Cover |
|
- | |||||
| 2 | 9781946 | Console-glass (control Panel) |
|
- | |||||
| 3 | 3191072 | Breaker, 15 Amp |
|
- | |||||
| 4 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 4 | 9752423FW | End Cap (right) |
|
- | |||||
| 4 | 9752422FW | End Cap (left) |
|
- | |||||
| 5 | 9780577 | Button, Plug (8 Mm) |
|
- | |||||
| 6 | 9780852 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 6 | 9781697 | Panel, Control |
|
- | |||||
| 7 | WP3400882 | Screw, (2) 8-32 X 3/16 (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 7 | 9781314 | Thermostat |
|
$ 192.81 | |||||
| 8 | WP9752405FW | Knobs, Control (6) (Replaces: 9752405FW) |
|
$ 23.05 | |||||
| 9 | 313102 | Light, Indicator (2) (burners) |
|
$ 66.48 | |||||
| 10 | 9780799 | Lens, Light Module (use With 11) |
|
- | |||||
| 11 | 9780798 | Light Module |
|
- | |||||
| 11 | 9780800 | Seal (oven) |
|
- | |||||
| 12 | 9752442PW | Trim Strip |
|
- | |||||
| 13 | 3191102FW | Switch, Oven Light |
|
- | |||||
| 14 | 9751480FW | Outlet, Untimed |
|
- | |||||
| 15 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 15 | 9781717 | Timer |
|
- | |||||
| 15 | 9752854 | Spacer |
|
- | |||||
| 16 | 9781954FW | Knob, Timer (6) |
|
$ 16.39 | |||||
| 17 | 9753076FW | Spacer, Timer (2) |
|
- | |||||
| 19 | WP9750646 | Infinite Switch (2400w (2)) (Replaces: 9750646) |
|
Immediately | $ 116.30 | ||||
| 19 | WP9750643 | Infinite Switch (1400w (2)) (Replaces: 9750643) |
|
Immediately | $ 145.12 | ||||
| 19 | WP3400882 | Screw (10) 8-32 X 3/16 (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 20 | 9781118 | Starter, Light |
|
- | |||||
| 21 | 9752760 | Lampholder (2) |
|
- | |||||
| 22 | 9750866 | Starter, Holder |
|
- | |||||
| 23 | WP95292 | Light, Fluorescent (Replaces: 422581) |
|
Immediately | $ 134.94 | ||||
| 24 | 9780797 | Pilot Light (self Clean) |
|
$ 27.34 | |||||
| 24 | 9780800 | Seal, Light (2) |
|
- | |||||
| 26 | W11245710 | Screw , (2) 8-18 X 3/8 (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 26 | 9781312 | Switch, Selector |
|
- | |||||
| 27 | WP9750343 | Lens, (2) Indicator (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 28 | 9753017 | Clip, Spring (2) |
|
- | |||||
| 28 | WP3400832 | Screw (2) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 29 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 29 | 9752439 | Base, Console |
|
- | |||||
| 30 | 9753304 | Bracket, Timer |
|
- | |||||
| 30 | 9780265 | Screw, (4) |
|
- |
