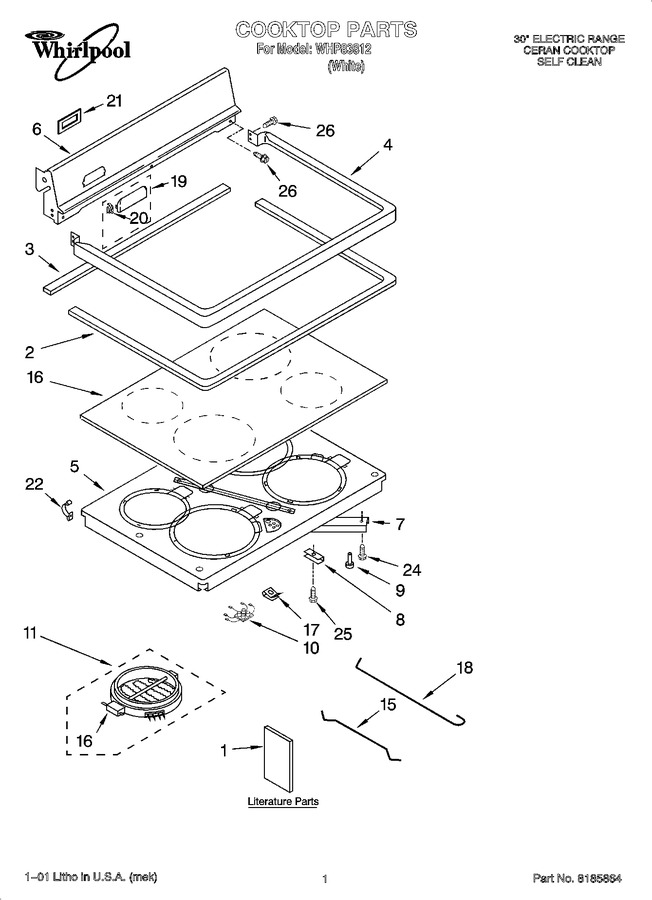

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9752766		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9752777		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT9754176		Literature Parts (use & Care Guide)		Appelez-nous	-
2	WP9780939		Gasket, Cooktop (front & Sides)   (Replaces: 9780939)			Immediately	$ 96.83
3	9781614		Rear Gasket				$ 47.02
4	9750456PW		Frame, Cooktop		Appelez-nous	-
5	9781549		Support, Element		Appelez-nous	-
6	9752337GW		Back Splash		Appelez-nous	-
7	9781553		Brace, Support		Appelez-nous	-
8	9750821		Support Clips (4)		Appelez-nous	-
9	238614		Bumper-white (4)   (Replaces: 9750969)				$ 84.79
10	9781937		Hot Light		Appelez-nous	-
11	W10823696		Element, Surface (2500 W - Lf)   (Replaces: 8272565)			Immediately	$ 214.25
11	W10823699		Element, Surface (1500 W - Lr)   (Replaces: 8272564)			Immediately	$ 169.95
11	W10823697		Element, Surface (2200w - Rr)   (Replaces: 9753997)				$ 380.57
11	W10823698		Element, Surface (1800 W - Rf)   (Replaces: 8272566)			Immediately	$ 236.75
15	9781460		Rod, Small Ceran Element		Appelez-nous	-
16	9781583		Cooktop, Ceran		Appelez-nous	-
17	WP9781235		Speed Nut   (Replaces: 9781235)				$ 12.56
18	9781459		Rod, Large Ceran Element		Appelez-nous	-
19	9753040CW		Cap, Vent		Appelez-nous	-
20	3149190		Clip, Vent Cap		Appelez-nous	-
21	9750767		Gasket, Vent		Appelez-nous	-
22	WP98997		Clip, Wire   (Replaces: 98997)				$ 11.64
24	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
25	423248		Screw, 10-16 X 3/4		Appelez-nous	-
26	3149333		Screw, 10-16 X 1/2				$ 5.33

    View Diagram in Separate Window       Print Part List
