01 - Cooktop Parts

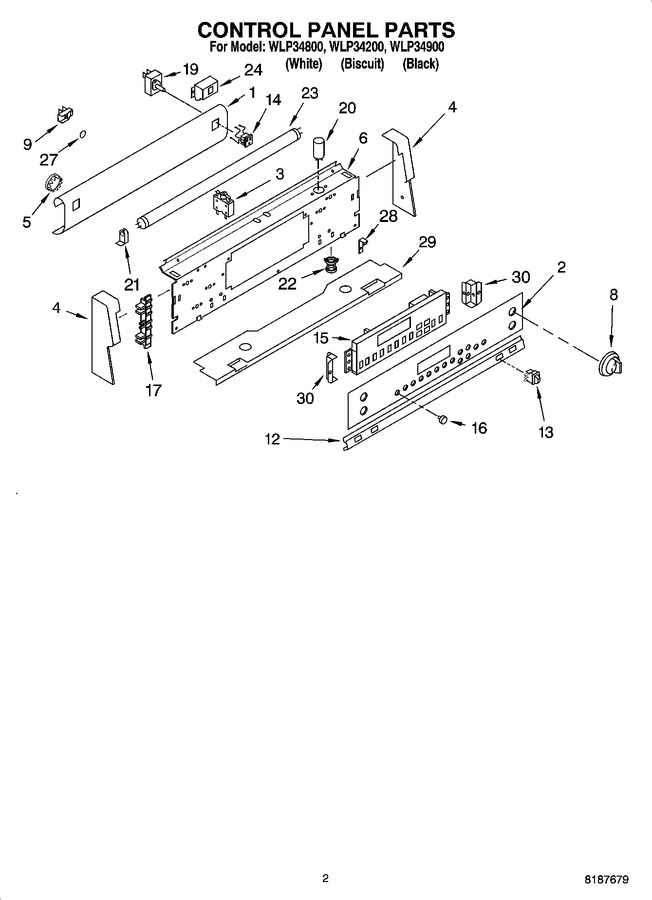

02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts
06 - Hidden Bake Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9755481PB | Lamp Cover (black) |
|
- | |||||
| 1 | 9755481PW | Lamp Cover (white) |
|
- | |||||
| 1 | 9755481PC | Lamp Cover (biscuit) |
|
- | |||||
| 2 | 9752815 | Console-glass (white) |
|
- | |||||
| 2 | 9755530 | Console-glass (black (control Panel)) |
|
- | |||||
| 2 | 9755505 | Console-glass (biscuit) |
|
- | |||||
| 3 | 3191072 | Breaker, 15amp. (2) |
|
- | |||||
| 4 | 9752423FC | End Cap (biscuit Right) |
|
- | |||||
| 4 | 9752422FC | End Cap (biscuit Left) |
|
- | |||||
| 4 | 9752423FW | End Cap (white (right)) |
|
- | |||||
| 4 | 9752422FW | End Cap (white (left) |
|
- | |||||
| 4 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 4 | 9752423FB | End Cap (black, Right) |
|
- | |||||
| 4 | 9752422FB | End Cap (black, Left) |
|
- | |||||
| 5 | 9780577 | Button Plug (8 Mm (2)) |
|
- | |||||
| 6 | 9780852 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 6 | 9755511 | Panel, Control |
|
- | |||||
| 6 | 9752854 | Spacer |
|
- | |||||
| 8 | 9752405FB | Knobs, Control (4) (black) |
|
$ 17.20 | |||||
| 8 | WP9752405FW | Knobs, Control (4) (white) (Replaces: 9752405FW) |
|
$ 23.05 | |||||
| 8 | 9752405FC | Knobs, Control (4) (biscuit) |
|
- | |||||
| 9 | 313102 | Light, Indicator (2) (burners) |
|
$ 66.48 | |||||
| 12 | 9752441PW | Trim Strip (white) |
|
- | |||||
| 12 | 9752441PB | Trim Strip (black) |
|
- | |||||
| 12 | 9752441PC | Trim Strip (biscuit) |
|
- | |||||
| 13 | 3191102FB | Switch, Oven Light (black) |
|
- | |||||
| 13 | 3191102FC | Switch, Oven Light (biscuit) |
|
- | |||||
| 13 | 3191102FW | Switch, Oven Light (white) |
|
- | |||||
| 14 | 9755406FW | Outlet, Untimed (2) (white) |
|
- | |||||
| 14 | 9755406FB | Outlet, Untimed (2) (black) |
|
- | |||||
| 14 | 9755406FC | Outlet, Untimed (2) (biscuit) |
|
- | |||||
| 15 | 9754261 | Timer |
|
$ 535.79 | |||||
| 15 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 15 | 9752854 | Spacer, Timer |
|
- | |||||
| 16 | 9781954FC | Knob, Timer (17) (biscuit) |
|
$ 14.55 | |||||
| 16 | 9781954FW | Knob, Timer (17) (white) |
|
$ 16.39 | |||||
| 16 | 9781954FB | Knob, Timer (17) (black) |
|
$ 14.66 | |||||
| 17 | 9753076FC | Insert (2) (biscuit) |
|
- | |||||
| 17 | 9753076FW | Insert (2) (white) |
|
- | |||||
| 17 | 9753076FB | Insert (2) (black) |
|
- | |||||
| 19 | WP9750643 | Infinite Switch (1400w (2)) (Replaces: 9750643) |
|
Immediately | $ 145.12 | ||||
| 19 | WP9750646 | Infinite Switch (2400w (2)) (Replaces: 9750646) |
|
Immediately | $ 116.30 | ||||
| 19 | WP3400882 | Screw (8) 8-32 X 3/16 (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 20 | 9755493 | Starter, Light |
|
- | |||||
| 21 | 9755492 | Lampholder (2) |
|
- | |||||
| 22 | 9750866 | Starter, Holder |
|
- | |||||
| 23 | 9755491 | Light, Fluorescent |
|
- | |||||
| 24 | 9755353PB | Box, Outlet (black) |
|
- | |||||
| 24 | 9755353PW | Box, Outlet (white) |
|
- | |||||
| 24 | 9755353PC | Box, Outlet (biscuit) |
|
- | |||||
| 27 | WP9750343 | Lens, Indicator (2) (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 28 | 9753017 | Clip, Spring (2) |
|
- | |||||
| 28 | 9780265 | Screw (2) |
|
- | |||||
| 29 | 9752439 | Base, Console |
|
- | |||||
| 29 | WP3400832 | Screw (3) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 30 | 9753304 | Bracket, Timer |
|
- | |||||
| 30 | 9780265 | Screw, (4) |
|
- |
