SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)

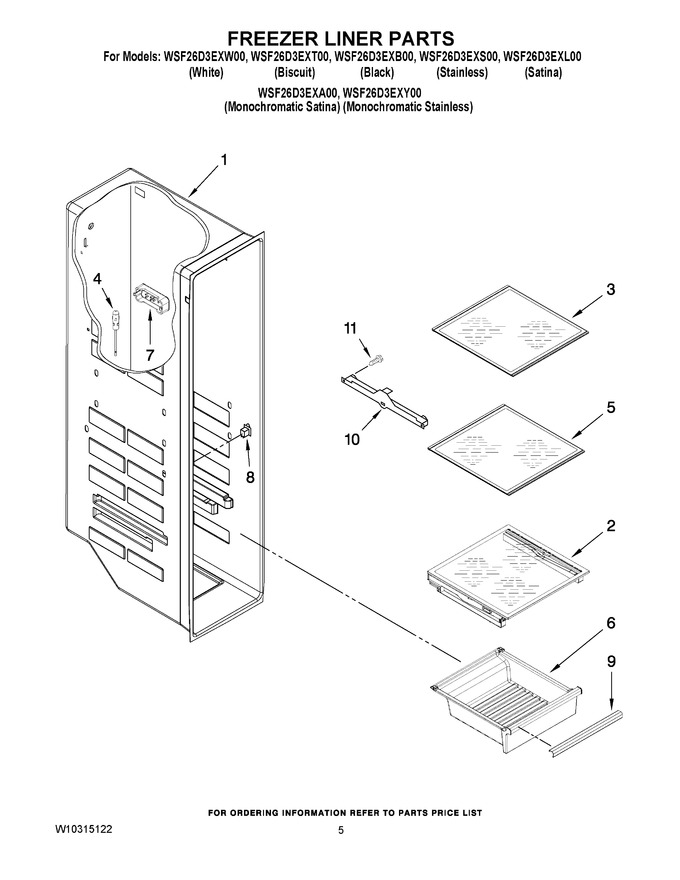

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Aseviceable Part)		Appelez-nous	-
2	W10256766		Cover Assy		Appelez-nous	-
3	W10238483		Shelf, Glass Upper		Appelez-nous	-
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W10269145		Shelf, Glass Lower				$ 107.30
6	WPW10260985		Pan, Freezer (also Order 7, 8, & 9)   (Replaces: W10260985)				$ 156.89
7	W10425253		Cover, Thermistor   (Replaces: W10323643)		Appelez-nous	-
8	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
9	W11236850		Trim, Handle   (Replaces: W10260986)		Appelez-nous	-
10	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
10	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
11	718257		Screw   (Replaces: 489100)		Appelez-nous	-
