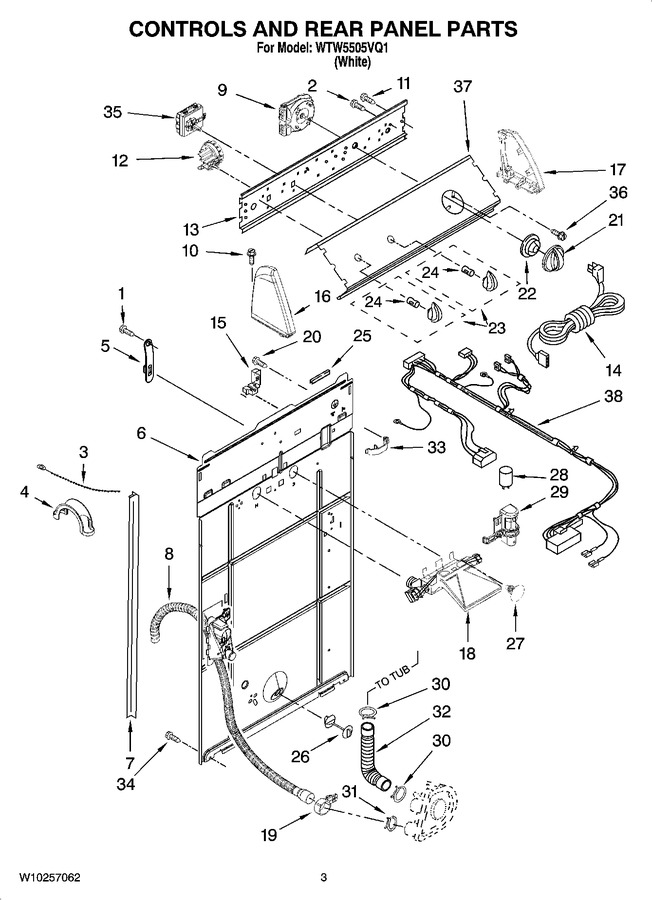

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 2 | 3400073 | Screw, Ground |
|
- | |||||
| 3 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 4 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 8.17 | |||||
| 6 | W10153017 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | WPW10189267 | Drain Hose Assembly (includes Item 19) (Replaces: W10189267) |
|
Immediately | $ 70.58 | ||||
| 9 | WPW10199989 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: W10199989) |
|
Immediately | $ 367.79 | ||||
| 10 | WP388326 | Screw, 8-18 X 1.25 (Replaces: 388326) |
|
$ 9.29 | |||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 12 | 8577846 | Switch, Water Level |
|
- | |||||
| 13 | 3948814 | Bracket, Control |
|
- | |||||
| 14 | W10820044 | Cord, Power (includes Item 15) (Replaces: 8578842) |
|
$ 149.87 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 17 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 18 | WPW10144820 | Valve, Water Inlet W/thermistor & Vacuum Break (Replaces: W10144820) |
|
Immediately | $ 73.54 | ||||
| 19 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 20 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 21 | WP8566022 | Knob, Timer (Replaces: 8566022) |
|
$ 66.58 | |||||
| 22 | WP8566018 | Dial, Timer (Replaces: 8566018) |
|
$ 53.59 | |||||
| 23 | 8565944 | Knob, Control |
|
$ 25.10 | |||||
| 24 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 25 | 303294 | Edge Protector |
|
- | |||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 27 | W10000080 | Clip, Push-in Retainer |
|
- | |||||
| 28 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 80.14 | ||||
| 29 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 33 | 3349557 | Retainer, Harness |
|
- | |||||
| 34 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 35 | WPW10112532 | Switch, Water Temperature (atc) (Replaces: W10112532) |
|
Immediately | $ 165.82 | ||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 8.81 | |||||
| 37 | W10240456 | Panel, Console |
|
- | |||||
| 38 | W10245705 | Harness, Wiring (for Detail See Page 9 & 10) |
|
- |
