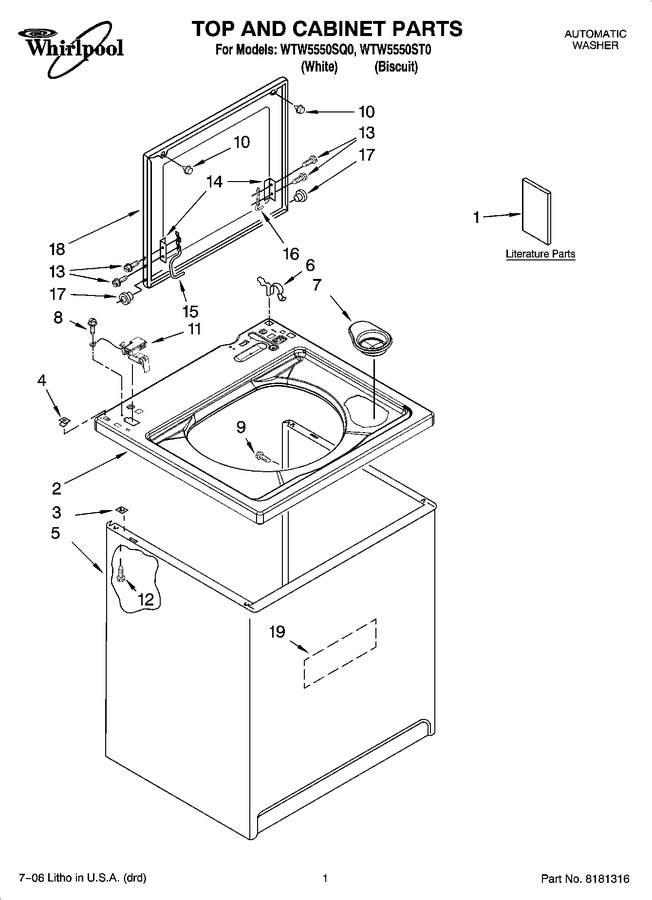

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3955884 | Use & Care Guide |
|
- | |||||
| 1 | 4313896 | Manual, Washer |
|
$ 33.26 | |||||
| 1 | 8577358 | Wiring Diagram |
|
- | |||||
| 1 | W10023660 | Energy Guide |
|
- | |||||
| 1 | 3957874 | Feature Sheet |
|
- | |||||
| 1 | W10044800 | Installation Instructions |
|
- | |||||
| 2 | 8543452 | Top (biscuit) |
|
- | |||||
| 2 | 8543451 | Top (white) |
|
- | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 8.07 | ||||
| 4 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 5 | 3954357 | Cabinet (biscuit) |
|
$ 268.04 | |||||
| 5 | 63424 | Cabinet (white) |
|
$ 388.52 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 8.19 | ||||
| 7 | 8566266 | Dispenser, Bleach |
|
$ 39.81 | |||||
| 8 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 9 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 10 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 8.33 | ||||
| 11 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 39.82 | ||||
| 12 | WP3390631 | Screw, 10-16 X 3/8 (4) (Replaces: 3390631) |
|
$ 8.25 | |||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 355274) |
|
Immediately | $ 7.55 | ||||
| 14 | WP21097 | Pad, Lid Hinge (2) (Replaces: 21097) |
|
$ 8.19 | |||||
| 15 | 8559336 | Hinge, Lid (l.h.) |
|
- | |||||
| 16 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 28.82 | |||||
| 17 | 8319539 | Bearing, Lid Hinge (2) |
|
$ 5.51 | |||||
| 18 | 8580057 | Lid (white) |
|
- | |||||
| 18 | 8580058 | Lid (biscuit) |
|
- | |||||
| 19 | 3976348 | Cabinet - Sound Damper |
|
$ 37.92 |
