SELECT A DIAGRAM

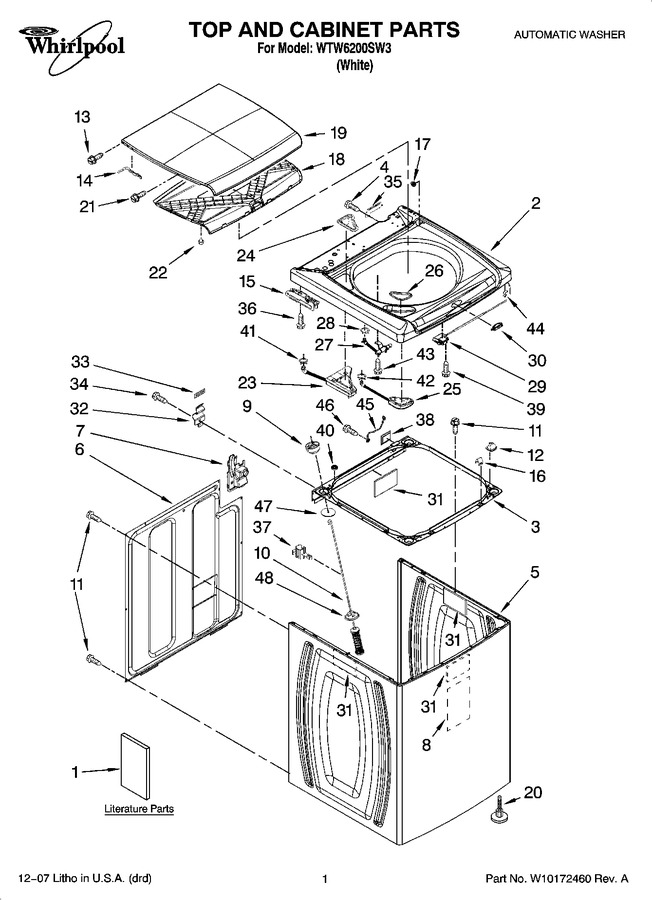

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10026592		Use & Care Guide		Appelez-nous	-
1	W10165663		Energy Guide		Appelez-nous	-
1	8577781		Wiring Diagram		Appelez-nous	-
1	8566927		Quick Start Guide		Appelez-nous	-
1	W10026571		Tech Sheet		Appelez-nous	-
2	8565317		Top		Appelez-nous	-
3	W10162416		Frame Assembly, Cabinet Top (includes Items 31 & 38)		Appelez-nous	-
4	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
5	8566156		Cabinet		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.58
8	3976348		Sound Absorber (cabinet)				$ 37.92
9	W10198919		Ball, Suspension (4)   (Replaces: W10111536)				$ 150.90
10	W10820048		Damper Assembly, Tub Suspension (set Of 4-includes Items 47 & 48)   (Replaces: 8564009)			Immediately	$ 84.23
11	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 8.40
12	W10042120		Locator, Top (2)				$ 7.04
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.55
14	WP8576780		Hinge Arm, Lid (2)   (Replaces: 8576780)				$ 9.09
15	8563959		Hinge, Spring Assembly (steel Lid) (right)				$ 136.93
15	8563958		Hinge, Spring Assembly (steel Lid) (left)				$ 81.98
16	WP8563785		Lock, Top- Front (2)   (Replaces: 8563785)				$ 7.96
17	W10052730		Bearing, Lid Hinge (2)				$ 39.52
18	8577353		Lid-inner (includes Item 22)				$ 167.44
19	8572894		Lid				$ 176.87
20	W10739673		Foot Assembly, Leveling (4)   (Replaces: 8578826)				$ 14.33
21	W10076920		Screw (2)				$ 5.86
22	W10076780		Bumper, Lid (2)				$ 9.90
23	WPW10161865		Dispenser, Stain Remover   (Replaces: W10161865)				$ 181.95
24	8566211		Bezel, Stain Remover Dispenser				$ 6.97
25	8564976		Dispenser, Detergent				$ 62.69
26	8576772		Bezel, Detergent Dispenser		Appelez-nous	-
27	WPW10106990		Nozzle Assembly, Fresh Water   (Replaces: W10106990)			Immediately	$ 107.07
28	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 155.46
30	8572019		Bezel, Lid Lock				$ 39.65
31	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 8.38
32	WP8564456		Hinge, Top (2)   (Replaces: 8564456)				$ 96.01
33	18849		Pad, Top Hinge (2)				$ 21.15
34	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
35	8563941		Cover, Harness				$ 87.73
36	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
37	8543784		Bracket, Drain Hose				$ 37.38
38	8578386		Shield, Wire Harness		Appelez-nous	-
39	WP8281136		Screw, 10-16 X 3/4   (Replaces: 8281136)				$ 7.30
40	8576476		Spacer, Rear (cabinet/top)				$ 17.57
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
42	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
43	W11700520		Screw, 10-16 X 9/16   (Replaces: 3400061)				$ 14.28
44	WP90016		Clip, Harness (5)   (Replaces: 90016)				$ 11.89
45	3184020		Wire, Ground Jumper   (Replaces: 8281736)				$ 86.92
46	W10846509		Screw, 10-32 X 5/8   (Replaces: 3400076)			Immediately	$ 8.20
47	WP8577896		Washer, Suspension Umbrella (4)   (Replaces: 8577896)				$ 8.12
48	WP8564017		Cup, Suspension (4)   (Replaces: 8564017)				$ 28.79

    View Diagram in Separate Window       Print Part List
