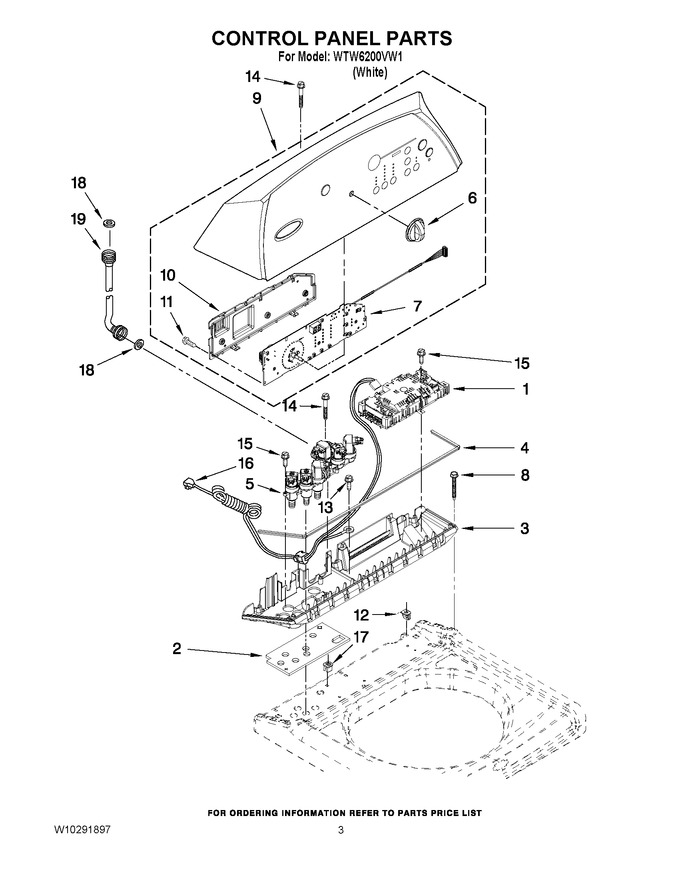

02 - Control Panel Parts
03 - Motor, Basket And Tub Parts
04 - Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10268788 | Control Unit Assembly, Machine & Motor |
|
- | |||||
| 2 | W10130502 | Gasket, Valve Tray |
|
$ 19.43 | |||||
| 3 | 8565304 | Tray Assembly, Console (includes Items 2 & 4) |
|
$ 99.34 | |||||
| 4 | 8565259 | Gasket, Console/tray |
|
- | |||||
| 5 | 8577408 | Valve, Log Assembly |
|
- | |||||
| 6 | 8574957 | Knob, Control |
|
$ 26.10 | |||||
| 7 | WPW10051149 | User Interface (Replaces: W10051149) |
|
$ 263.88 | |||||
| 8 | W10004990 | Screw, 6-20 X 1.2 |
|
- | |||||
| 9 | W10183845 | Console |
|
- | |||||
| 10 | 8564265 | Cover, Rear- User Interface |
|
$ 142.60 | |||||
| 11 | WP4449745 | Screw, 6-19 X 1/2 (3) (Replaces: W10003770) |
|
$ 7.98 | |||||
| 12 | W10022060 | Nut, Push-in (3) |
|
- | |||||
| 13 | WP3351614 | Screw, Power Cord Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 14 | 8565324 | Screw, 10-16 X 1.75 |
|
$ 14.05 | |||||
| 15 | WP8281136 | Screw, 8-18 X 3/4 (Replaces: 8281136) |
|
$ 7.30 | |||||
| 16 | 3407203 | Cord Assembly, Power |
|
$ 59.22 | |||||
| 17 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 18 | WP16123 | Washer, Water Inlet Hose (1-1/16 X 5/8)(4) (Replaces: W10242307) |
|
$ 8.16 | |||||
| 19 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194208) |
|
Immediately | $ 24.09 | ||||
| 19 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: 8571378) |
|
Immediately | $ 24.09 |
