SELECT A DIAGRAM

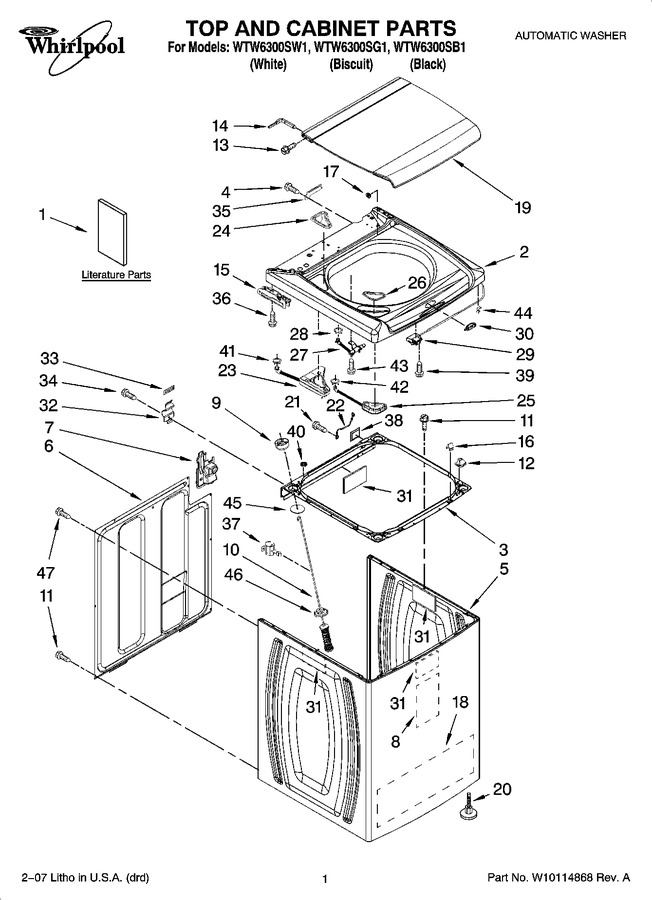

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8567167		Energy Guide		Appelez-nous	-
1	8566930		Use & Care Guide		Appelez-nous	-
1	W10026571		Tech Sheet		Appelez-nous	-
1	8566927		Quick Start Guide		Appelez-nous	-
1	8577781		Wiring Diagram		Appelez-nous	-
2	8565318		Top (biscuit)		Appelez-nous	-
2	8565317		Top (white)		Appelez-nous	-
2	W10058320		Top (black)		Appelez-nous	-
3	W10114656		Frame Assembly, Cabinet Top (includes Items 31 & 38)		Appelez-nous	-
4	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
5	8566156		Cabinet (white)		Appelez-nous	-
5	8566157		Cabinet (biscuit)		Appelez-nous	-
5	W10050330		Cabinet (black)		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: 8543781)				$ 8.17
8	8576784		Sound Absorber, Cabinet				$ 6.74
9	W10198919		Ball, Suspension (4)   (Replaces: W10111536)				$ 143.71
10	W10820048		Damper Assembly, Tub Suspension (set Of 4-includes Items 45 & 46)   (Replaces: 8564009)			Immediately	$ 82.85
11	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.86
12	W10042120		Locator, Top (2)				$ 7.04
13	W11404293		Screw, Lid Hinge Mounting (4)   (Replaces: W10078270)			Immediately	$ 14.04
14	WP8563965		Hinge Wire (2) (l.h.)   (Replaces: 8563965)			Immediately	$ 29.44
14	WP8572974		Hinge Wire (2) (r.h.)   (Replaces: 8572974)			Immediately	$ 29.05
15	8563963		Hinge, Spring Assembly (glass Lid) (right)				$ 79.53
15	8563962		Hinge, Spring Assembly (glass Lid) (left)				$ 79.53
16	WP8563785		Lock, Top- Front (2)   (Replaces: 8563785)				$ 7.58
17	W10052730		Bearing, Lid Hinge (2)				$ 39.52
18	8578225		Sound Absorber, Cabinet				$ 26.49
19	W10071520		Lid, Glass (black)		Appelez-nous	-
19	8576485		Lid, Glass (gold Dust)		Appelez-nous	-
19	8565267		Lid, Glass (brilliant White Aluminum)		Appelez-nous	-
20	W10739673		Foot Assembly, Leveling (4)   (Replaces: 8578826)				$ 13.65
21	W10846509		Screw, 10-32 X 5/8   (Replaces: 3400076)			Immediately	$ 7.76
22	3184020		Wire, Ground Jumper   (Replaces: 8281736)				$ 82.78
23	W10052700		Dispenser, Bleach (elephant)				$ 73.49
23	W10052690		Dispenser, Bleach (biscuit)				$ 55.61
23	WPW10642278		Dispenser, Bleach (white)   (Replaces: W10059160)				$ 178.45
24	8580018		Bezel, Bleach Dispenser (biscuit)		Appelez-nous	-
24	8566211		Bezel, Bleach Dispenser (white)				$ 6.97
24	8580019		Bezel, Bleach Dispenser (elephant)		Appelez-nous	-
25	W10059170		Dispenser, Detergent (biscuit)		Appelez-nous	-
25	W10059180		Dispenser, Detergent (elephant)		Appelez-nous	-
25	8564976		Dispenser, Detergent (white)				$ 62.69
26	W10067320		Bezel, Detergent Dispenser (biscuit)		Appelez-nous	-
26	W10067330		Bezel, Detergent Dispenser (elephant)		Appelez-nous	-
26	8576772		Bezel, Detergent Dispenser (white)		Appelez-nous	-
27	WPW10106990		Nozzle Assembly, Fresh Water   (Replaces: W10106990)				$ 101.97
28	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 143.05
30	8572019		Bezel, Lid Lock (white)				$ 39.65
30	8563939		Bezel, Lid Lock (biscuit)		Appelez-nous	-
30	W10052520		Bezel, Lid Lock (black)				$ 7.78
31	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 7.98
32	WP8564456		Hinge, Top (2)   (Replaces: 8564456)				$ 91.44
33	18849		Pad, Top Hinge (2)				$ 20.14
34	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
35	8563941		Cover, Harness				$ 83.55
36	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
37	8543784		Bracket, Drain Hose				$ 37.38
38	8578386		Shield, Wire Harness		Appelez-nous	-
39	WP8281136		Screw, 10-16 X 3/4   (Replaces: 8281136)				$ 6.95
40	8576476		Spacer, Rear (cabinet/top)				$ 16.73
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.40
42	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
43	W11700520		Screw, 10-16 X 9/16   (Replaces: 3400061)				$ 13.60
44	WP90016		Clip, Harness (5)   (Replaces: 90016)				$ 11.32
45	WP8577896		Washer, Suspension Umbrella (4)   (Replaces: 8577896)				$ 7.73
46	WP8564017		Cup, Suspension (4)   (Replaces: 8564017)				$ 27.42
47	WP488488		Screw, 8-18 X 1/2   (Replaces: 489290)				$ 7.68
