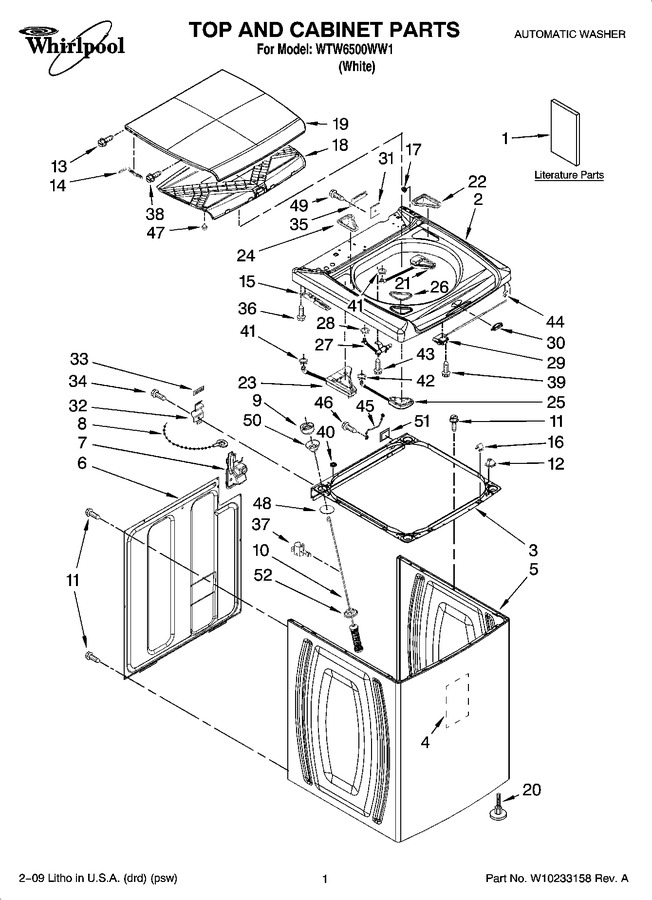

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10026634		Tech Sheet		Appelez-nous	-
1	W10062896		Energy Guide		Appelez-nous	-
1	8577781		Wiring Diagram		Appelez-nous	-
1	W10178406		Improved Wash Performance Sheet (spanish)		Appelez-nous	-
1	W10026652		Improved Wash Performance Sheet (english/french)		Appelez-nous	-
1	W10240438		Installation Instructions (english/french)		Appelez-nous	-
1	W10240439		Installation Instructions (spanish)		Appelez-nous	-
1	W10240440		Use & Care Guide (english/french)		Appelez-nous	-
1	W10240441		Use & Care Guide (spanish)		Appelez-nous	-
2	8565314		Top				$ 152.33
3	W10162416		Frame Assembly, Cabinet Top (includes Item 51)		Appelez-nous	-
4	8576784		Sound Absorber, Cabinet				$ 6.74
5	8566156		Cabinet		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.58
8	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 7.02
9	W10198919		Ball, Suspension (set Of 4 - Includes Item 50)   (Replaces: W10111536)				$ 150.90
10	W10247710		Damper Assembly, Tub Suspension (set Of 4-includes Items 9, 48, 50 & 52)   (Replaces: W10237427)			Immediately	$ 226.99
11	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 8.40
12	W10042120		Locator, Top (2)				$ 7.04
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.55
14	WP8576780		Hinge Arm, Lid (2)   (Replaces: 8576780)				$ 9.09
15	8563958		Hinge, Spring Assembly (left)				$ 81.98
15	8563959		Hinge, Spring Assembly (right)				$ 136.93
16	WP8563785		Lock, Top- Front (2)   (Replaces: 8563785)				$ 7.96
17	W10052730		Bearing, Lid Hinge (2)				$ 39.52
18	8577353		Lid-inner (includes Item 47)				$ 167.44
19	8572894		Lid				$ 176.87
20	W10240448		Foot Assembly, Leveling (4)				$ 5.85
21	WPW10172146		Dispenser, Fabric Softener   (Replaces: W10172146)				$ 171.44
22	W10137015		Bezel, Fabric Softener Dispenser				$ 7.37
23	WPW10187307		Dispenser, Stain Remover   (Replaces: W10187307)			Immediately	$ 178.98
24	8566211		Bezel, Stain Remover Dispenser				$ 6.97
25	8564976		Dispenser, Detergent				$ 62.69
26	8564979		Bezel, Detergent Dispenser				$ 31.75
27	WPW10106990		Nozzle Assembly, Fresh Water   (Replaces: W10106990)			Immediately	$ 107.07
28	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 155.46
30	8572019		Bezel, Lid Lock				$ 39.65
31	W10161707		Top Foam Seal		Appelez-nous	-
32	WP8564456		Hinge, Top (2)   (Replaces: 8564456)				$ 96.01
33	18849		Pad, Top Hinge (2)				$ 21.15
34	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
35	8563941		Cover, Harness				$ 87.73
36	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
37	8543784		Bracket, Drain Hose				$ 37.38
38	W10076920		Screw (2)				$ 5.86
39	WP8281136		Screw, 10-16 X 3/4   (Replaces: 8281136)				$ 7.30
40	8576476		Spacer, Rear (cabinet/top)				$ 17.57
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
42	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
43	W11700520		Screw, 10-16 X 9/16   (Replaces: 3400061)				$ 14.28
44	WP90016		Clip, Harness (5)   (Replaces: 90016)				$ 11.89
45	3184020		Wire, Ground Jumper   (Replaces: 8281736)				$ 86.92
46	W10846509		Screw, 10-32 X 5/8   (Replaces: 3400076)			Immediately	$ 8.20
47	W10076780		Bumper, Lid (2)				$ 9.90
48	WP8577896		Washer, Suspension Umbrella (4)   (Replaces: 8577896)				$ 8.12
49	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
50	W10198919		Bushing, Suspension (set Of 4-includes Item 9)   (Replaces: W10167599)				$ 150.90
51	8578386		Shield, Wire Harness		Appelez-nous	-
52	WP8564017		Cup, Suspension (4)   (Replaces: 8564017)				$ 28.79
