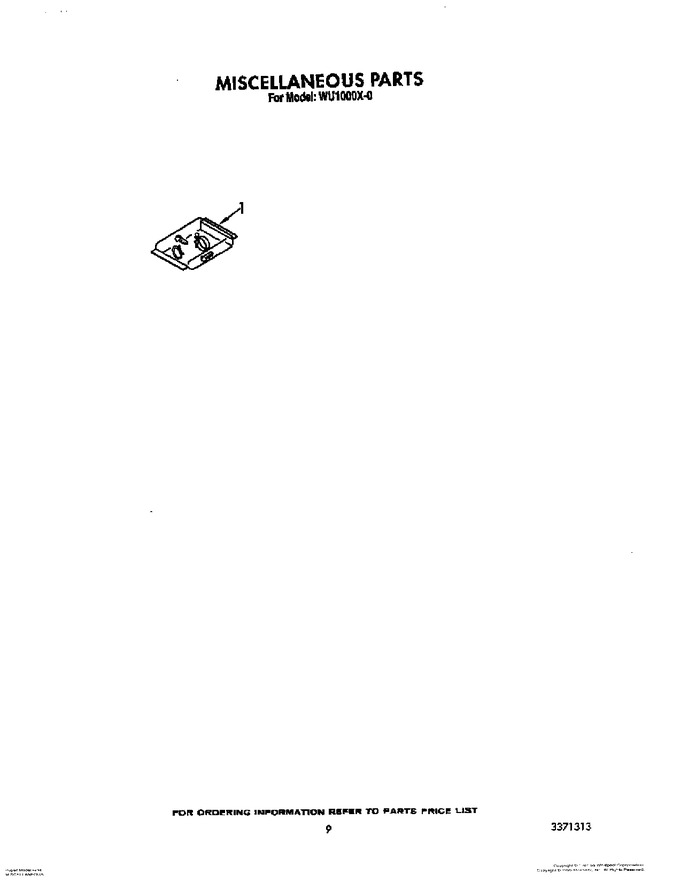

02 - Frame And Console
03 - Inner Door
04 - Tub Assembly
05 - Pump And Spray Arm
06 - Pump And Motor
07 - Dishrack
08 - Miscellaneous, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3369816 | Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps |
|
$ 34.93 | |||||
| 4317931 | Platinum |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| 285006 | Paint, Spray 13 Oz. (black) |
|
$ 59.89 | ||||||
| 350942 | Primer (white) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799340 | Black (uncut) |
|
- | ||||||
| 675476 | Vinyl Touch Up (blue) |
|
- | ||||||
| 675506 | Tine Tip Repair Kit (blue-enough For Two Complete Dishracks) |
|
- | ||||||
| 4317925 | Side Panel Kit (white) |
|
- | ||||||
| 4317926 | Avocado |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| 4317927 | Gold |
|
- | ||||||
| 4317929 | Side Panel Kit: (almond) |
|
- | ||||||
| 4317930 | Toast |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| LIT3369671 | Instructions, Installation |
|
- | ||||||
| LIT3367007 | Instructions, Installation (supplement) (locating Your Water Supply) |
|
- | ||||||
| LIT3370039 | Energy Guide |
|
- | ||||||
| LIT3369702 | Guide, Use & Care |
|
- | ||||||
| LIT3370463 | Wiring Diagram |
|
- | ||||||
| LIT3371313 | Parts List |
|
- |
