Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3369011 Housing Assembly   (Replaces: 3369011) Special Order $ 141.27

2 3369031 Seal, Drain Cover Special Order $ 9.42

3 3369028 Diaphragm Appelez-nous -
4 3369029 Ring, Diaphragm Special Order $ 7.04

5 3369030 Cover, Drain Valve Special Order $ 24.55

6 WP3368921 Screw (4)   (Replaces: 3368921) In-Stock Immediately $ 8.56

7 3369020 Seal Seat Special Order $ 7.86

8 WP3385557 Seal Head   (Replaces: 3369410) Special Order $ 111.69

9 4386996A Impeller & Bearing Assembly   (Replaces: 3369013) In-Stock Immediately $ 129.47

10 WP3369012 Disk & Mount Assembly   (Replaces: 3369012) Special Order $ 97.43

11 3369583 Motor Appelez-nous -
12 350942 Primer (white)   (Replaces: 206922) Special Order $ 94.14

12 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

12 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

12 675476 Vinyl Touch Up (blue) Appelez-nous -
12 675506 Tine Tip Repair Kit (blue-enough For Two Complete Dishracks) Appelez-nous -
12 4317925 Side Panel Kit (white) Appelez-nous -
12 4317926 Avocado Appelez-nous -
12 4317927 Gold Appelez-nous -
12 4317929 Side Panel Kit: (almond) Appelez-nous -
12 4317930 Toast Appelez-nous -
12 4317931 Platinum Appelez-nous -
12 3368922 Screw (3) Appelez-nous -
12 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
12 285006 Paint, Spray 13 Oz. (black) Special Order $ 59.89

12 350956 Paint, Spray 13 Oz. (almond) Special Order $ 54.01

12 350941 Leveler (thinner) Appelez-nous -
12 978883 Almond (uncut) Appelez-nous -
12 799340 Black (uncut) Appelez-nous -
LIT3367007 Instructions, Installation (supplement) (locating Your Water Supply) Appelez-nous -
LIT3369702 Guide, Use & Care Appelez-nous -
LIT3370039 Energy Guide Appelez-nous -
LIT3369671 Instructions, Installation Appelez-nous -
LIT3370180 Parts List Appelez-nous -
LIT3370463 Wiring Diagram Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

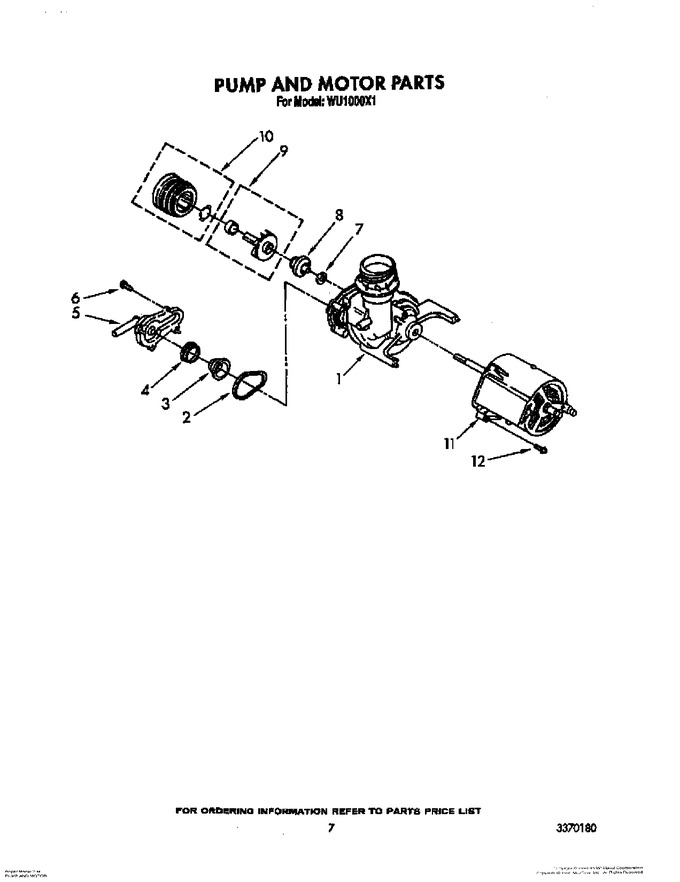

Diagram for WU1000X1
