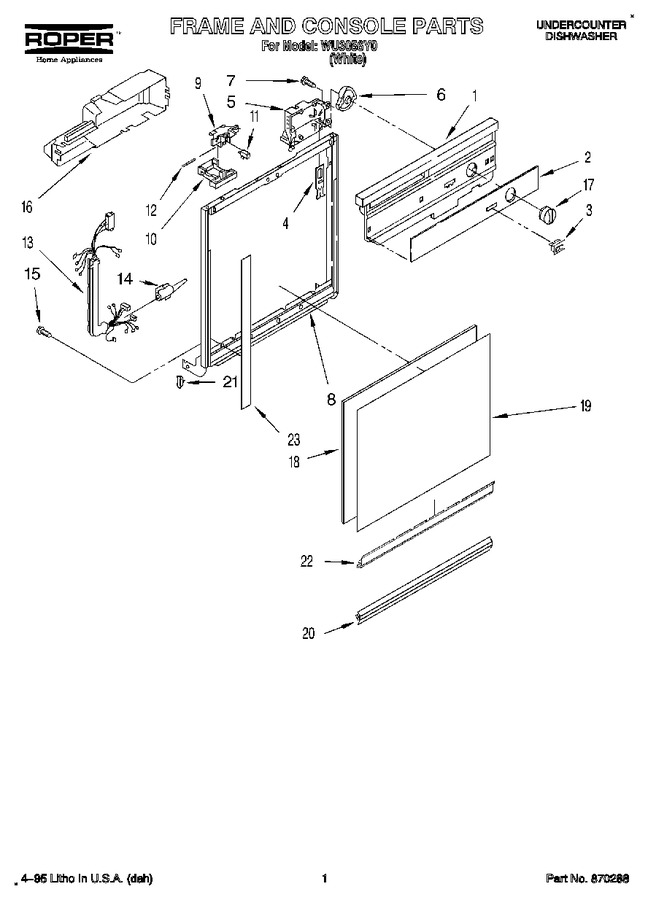

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3373734		Console (incl. Illus. 2)		Appelez-nous	-
2	3375171		Insert, Console		Appelez-nous	-
3	WP4314961		Switch, Rocker   (Replaces: 3369612)				$ 84.56
4	3368997		Follower, Cam				$ 35.20
5	3373590		Timer		Appelez-nous	-
6	WP8271510		Cam   (Replaces: 3375140)				$ 8.06
7	WP304231		Screw, 8-18 X 1/2 (3)   (Replaces: 304231)			Immediately	$ 7.33
8	3374018		Door Frame (includes Item 22)		Appelez-nous	-
9	WP3380854		Bolt, Latch   (Replaces: 3368953)			Immediately	$ 91.56
10	WP3368954		Lever, Latch   (Replaces: 3369573)				$ 7.83
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3374506		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 3400803)				$ 6.37
16	3373367		Cover Timer		Appelez-nous	-
17	3370946		Knob, Timer		Appelez-nous	-
18	3368979		Spacer, Corrugated				$ 38.99
19	3371716		+front Panel (white)				$ 49.13
20	3374011		Retainer, Panel				$ 59.30
21	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 9.91
22	3375081		Channel, Retainer (also Order Item No.20)		Appelez-nous	-
23	3371196		Trim (2)		Appelez-nous	-
