SELECT A DIAGRAM

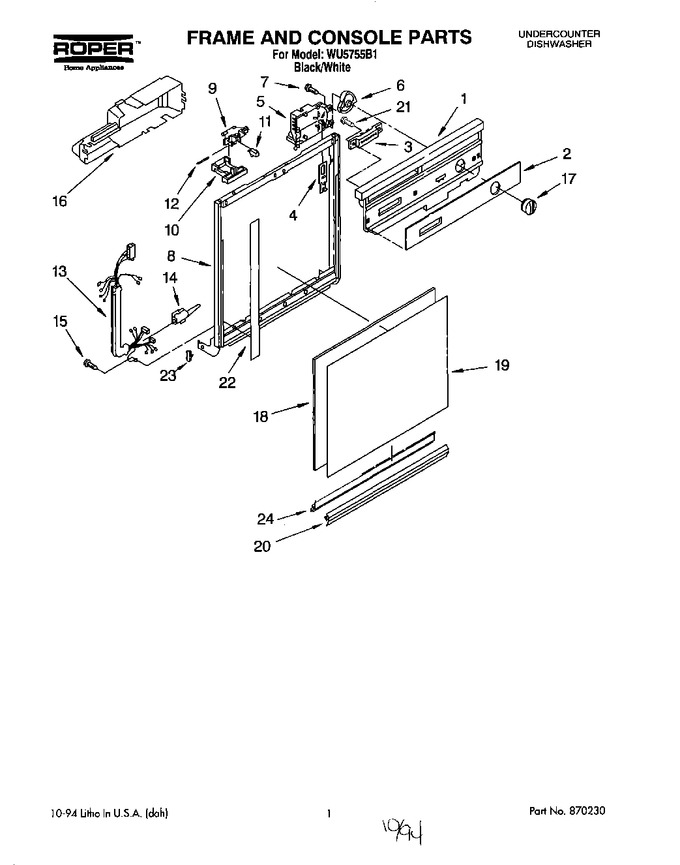

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly, Lit/optional


04 - Pump And Spray Arm


05 - Pump And Motor, Miscellaneous


06 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3373731		Console (incl. Illus. 2)		Appelez-nous	-
2	3375170		Insert, Console		Appelez-nous	-
3	3374496		Switch, 7-pushbutton		Appelez-nous	-
4	3368997		Follower, Cam				$ 35.20
5	3375080		Timer		Appelez-nous	-
6	WP8271510		Cam   (Replaces: 3375140)				$ 8.96
7	WP304231		Screw, 8-18 X 1/2 (3)   (Replaces: 304231)			Immediately	$ 8.14
8	3374711		Door Frame (includes Item 24)				$ 158.94
9	WP3380854		Bolt, Latch   (Replaces: 3368953)			Immediately	$ 101.73
10	WP3368954		Lever, Latch   (Replaces: 3369573)				$ 8.70
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3375033		Harness And Protector		Appelez-nous	-
14	3368977		Elbow, Harness		Appelez-nous	-
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 3400803)				$ 7.08
16	3373367		Cover Timer		Appelez-nous	-
17	3370946		Knob, Timer		Appelez-nous	-
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Front Panel (white/black)   (Replaces: 3369769)				$ 59.42
19	WP3369769		Front Panel (golden Harvest/ White)   (Replaces: 3370524)				$ 59.42
19	WP3369769		Front Panel (almond/black)   (Replaces: 3369516)				$ 59.42
20	3374011		Retainer, Panel				$ 59.30
21	WP304231		Screw (2)   (Replaces: 304231)			Immediately	$ 8.14
22	3371196		Trim (2)		Appelez-nous	-
23	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
24	WP3374716		Channel, Retainer (also Order Item 20)   (Replaces: 3374716)				$ 100.22

    View Diagram in Separate Window       Print Part List
