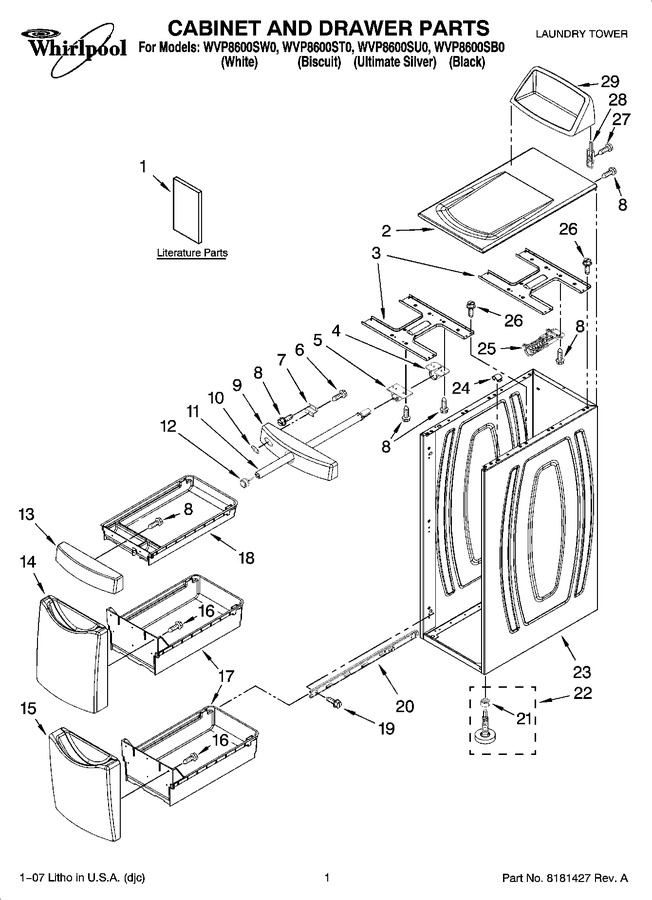

01 - Cabinet And Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10106760 | Guide, Use & Care |
|
- | |||||
| 2 | W10064060 | Top (ultimate Silver) |
|
- | |||||
| 2 | W10064050 | Top (biscuit) |
|
- | |||||
| 2 | W10011320 | Top (white) |
|
- | |||||
| 2 | W10064030 | Top (black) |
|
- | |||||
| 3 | W10070580 | Bracket, Top Support |
|
- | |||||
| 4 | W10101183 | Bushing Sleeve Rear, Stop |
|
- | |||||
| 5 | W10101184 | Bushing, Sleeve Front |
|
- | |||||
| 6 | 489437 | Screw, 10-16 X 1/2 |
|
- | |||||
| 7 | W10011880 | Bracket, Pogo Front (2) |
|
- | |||||
| 8 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 9 | W10101119 | Front, Pogo (includes Illus. 10) (ultimate Silver) |
|
- | |||||
| 9 | W10012160 | Front, Pogo (includes Illus. 10) (biscuit) |
|
- | |||||
| 9 | W10012140 | Front, Pogo (includes Illus. 10) (white) |
|
- | |||||
| 9 | W10012150 | Front, Pogo (includes Illus. 10) (black) |
|
- | |||||
| 10 | 9757609 | Medallion |
|
$ 33.27 | |||||
| 11 | W10011750 | Pogo Bar Assembly |
|
- | |||||
| 12 | W10011740 | End Cap, Pogo Bar |
|
$ 33.98 | |||||
| 13 | W10011560 | Front, Organizer Drawer (white) |
|
- | |||||
| 13 | W10103270 | Front, Organizer Drawer (ultimate Silver) |
|
- | |||||
| 13 | W10103260 | Front, Organizer Drawer (biscuit) |
|
- | |||||
| 13 | W10103250 | Front, Organizer Drawer (black) |
|
- | |||||
| 14 | W10070350 | Front, Middle Drawer (biscuit) |
|
- | |||||
| 14 | W10070340 | Front, Middle Drawer (black) |
|
- | |||||
| 14 | W10070360 | Front, Middle Drawer (ultimate Silver) |
|
- | |||||
| 14 | W10011550 | Front, Middle Drawer (white) |
|
- | |||||
| 15 | W10070320 | Front, Bottom Drawer (ultimate Silver) |
|
- | |||||
| 15 | W10070300 | Front, Bottom Drawer (black) |
|
- | |||||
| 15 | W10011540 | Front, Bottom Drawer (white) |
|
- | |||||
| 15 | W10070310 | Front, Bottom Drawer (biscuit) |
|
- | |||||
| 16 | WP3400806 | Screw, 8-18 X 1-1/4 (Replaces: W10113962) |
|
$ 7.29 | |||||
| 17 | W10011410 | Drawer Bin, Large (2) |
|
- | |||||
| 18 | W10011500 | Drawer Bin, (small) |
|
- | |||||
| 19 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 20 | W10011420 | Slide, Assembly |
|
- | |||||
| 21 | WP3359452 | Nut, Foot (Replaces: 3359452) |
|
Immediately | $ 6.80 | ||||
| 22 | WP8563585 | Leveling Foot & Nut (Replaces: 8563585) |
|
Immediately | $ 13.28 | ||||
| 24 | W10011660 | Clip, Top Lock |
|
- | |||||
| 25 | W10101220 | Push Mechanism Assembly |
|
- | |||||
| 26 | WP1163283 | Screw, 8-18 X 1/2 (Replaces: 3400842) |
|
$ 6.80 | |||||
| 27 | W10142289 | Screw, 8-18 X 5/8 (Replaces: 3400893) |
|
$ 8.65 | |||||
| 28 | W10070490 | Bracket, Console |
|
- | |||||
| 29 | W10070550 | Console Assembly (white) |
|
- | |||||
| 29 | W10070830 | Console Assembly (biscuit) |
|
- | |||||
| 29 | W10070840 | Console Assembly (ultimate Silver) |
|
- | |||||
| 29 | W10070820 | Console Assembly (black) |
|
- | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) |
|
$ 53.90 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 8212605 | Paint, Touch-up (1/2oz.) (ultimate Silver) |
|
$ 16.01 | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 24.99 |
