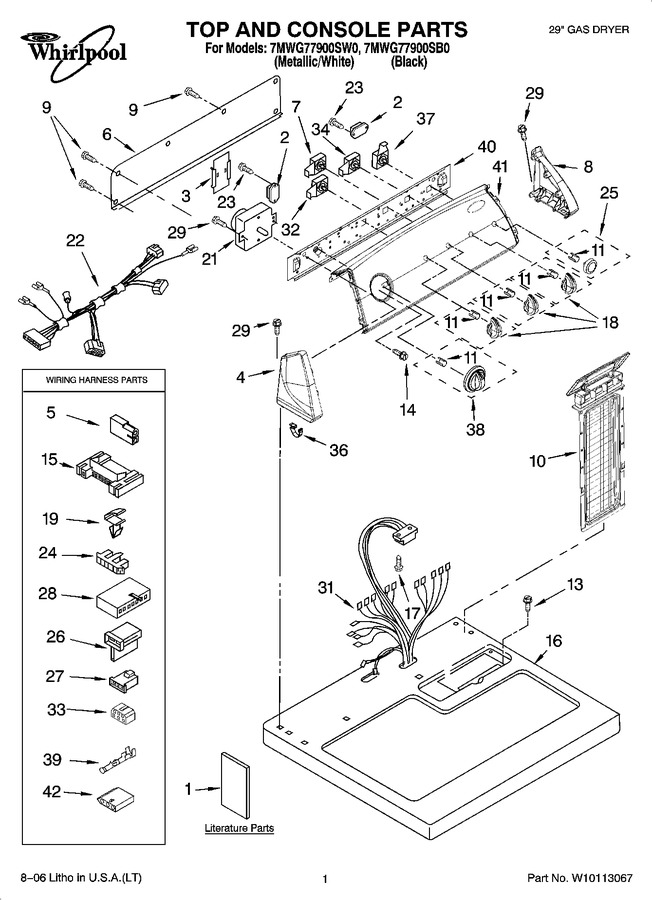

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3406666		Wiring Diagram		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8562582		Installation Instructions		Appelez-nous	-
1	8579564		Sheet, Cycle Feature		Appelez-nous	-
1	8578183		Use & Care Guide		Appelez-nous	-
2	WP3405281		Power Relay (2)   (Replaces: 3405281)			Immediately	$ 54.85
3	3976623		Control Board		Appelez-nous	-
4	WP8565957		Cap, End (l.h.) (white)   (Replaces: 8565957)				$ 64.76
4	8565959		Cap, End (l.h.) (black)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	3405152		Switch, Wrinkle Shield				$ 131.07
8	WP8565954		Cap, End (r.h.) (white)   (Replaces: 8565954)				$ 65.84
8	8565956		Cap, End (r.h.) (black)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	8557859		Screen, Lint (black)				$ 92.03
10	W11778253		Screen, Lint (white)   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8579962		Top (black)		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
18	W10034380		Knob, Control (3)				$ 25.06
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
21	WP8299771		Timer Assembly (60 Hz.)   (Replaces: 8299771)				$ 347.87
22	8283281		Harness, Console		Appelez-nous	-
23	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 7.30
24	3397269		Connector, Timer				$ 25.55
25	W10034770		Knob, Push-to-start		Appelez-nous	-
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
28	3936150		Connector, 7-circuit				$ 77.60
29	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
31	8299900		Harness, Wiring		Appelez-nous	-
32	8299970		Switch, Temperature				$ 193.95
33	3347243		Connector 6-circuit		Appelez-nous	-
34	3405151		Switch, Signal				$ 193.40
36	WP8312709		Clip-console (2)   (Replaces: 8312709)			Immediately	$ 16.35
37	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
38	W10034750		Timer Knob Assembly				$ 28.27
39	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
40	8566052		Bracket, Control		Appelez-nous	-
41	8543044		Panel, Control		Appelez-nous	-
42	3936144		Connector				$ 21.22
