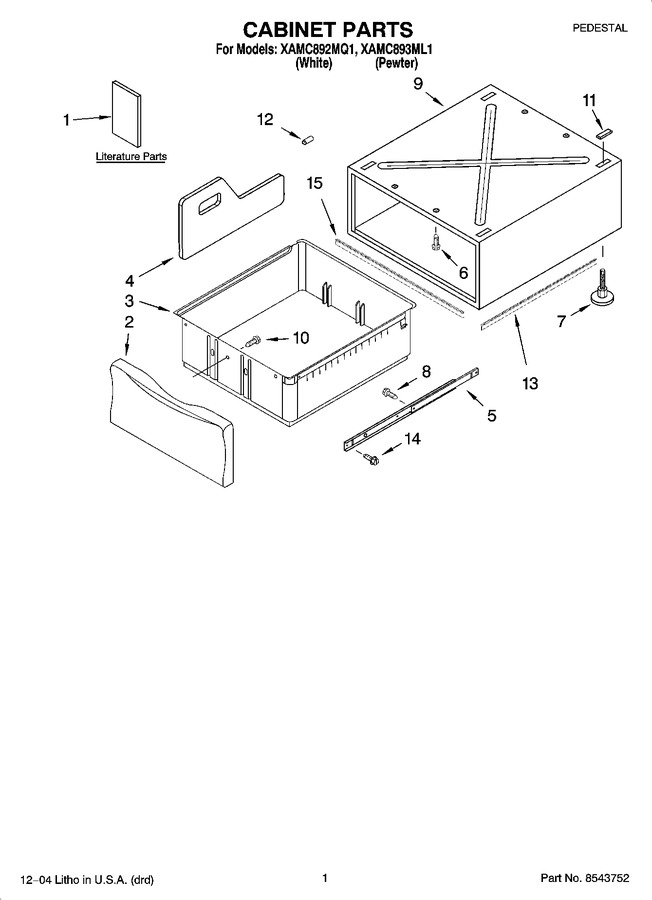

01 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8537905		Installation Instructions		Appelez-nous	-
1	8543752		Parts List		Appelez-nous	-
2	8537916		Drawer Front Assembly (pewter)		Appelez-nous	-
2	8537889		Drawer Front Assembly (white)		Appelez-nous	-
3	8537883		Drawer Bin				$ 113.24
4	8546245		Divider, Drawer (set Of 2)		Appelez-nous	-
5	WP8578394		Slide Assembly   (Replaces: 8537850)				$ 98.16
6	WPW10346892		Screw   (Replaces: 3400111)			Immediately	$ 7.19
7	WP8563585		Foot Assembly   (Replaces: 8563585)			Immediately	$ 14.76
8	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3400639)				$ 6.95
9	N/A		Cabinet (not Serviced)		Appelez-nous	-
10	WP1163283		Screw, 8-18 X 1/2   (Replaces: 3400842)				$ 7.19
11	8537863		Pad (4)				$ 34.34
12	W10491983		Cap (3)   (Replaces: 359702)		Appelez-nous	-
13	8537917		Edge Guard, Bottom (2)		Appelez-nous	-
14	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
15	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
15	WP4396174		Paint, Touch-up (1/2oz.) (pewter)   (Replaces: 4396174)				$ 28.20
15	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
15	4396175		Paint, Pressurized Spray (12 Oz.) (pewter)		Appelez-nous	-
15	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
15	8537902		Edge Guard, Top		Appelez-nous	-
