SELECT A DIAGRAM

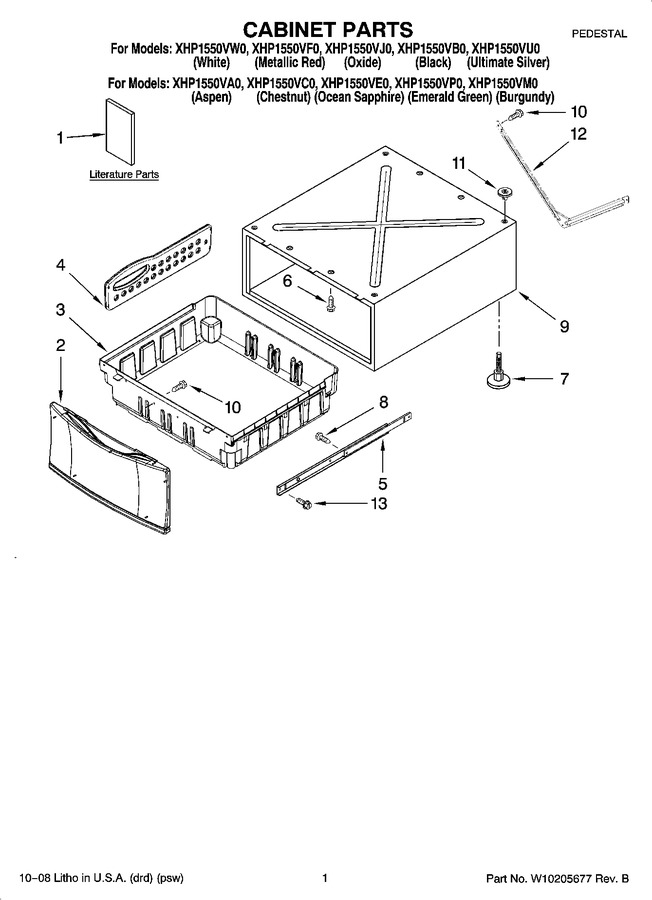

01 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10198562 | Installation Instructions |
|
- | |||||
| 2 | W10172760 | Drawer Front Assembly (aspen) |
|
- | |||||
| 2 | W10172749 | Drawer Front Assembly (white) |
|
$ 119.45 | |||||
| 2 | W10193241 | Drawer Front Assembly (metallic Red) |
|
$ 164.47 | |||||
| 2 | W10193242 | Drawer Front Assembly (oxide) |
|
$ 107.58 | |||||
| 2 | W10172756 | Drawer Front Assembly (ultimate Silver) |
|
- | |||||
| 2 | W10172759 | Drawer Front Assembly (ebony) |
|
- | |||||
| 2 | W10216396 | Drawer Front Assembly (burgundy) |
|
- | |||||
| 2 | W10193243 | Drawer Front Assembly (emerald Green) |
|
- | |||||
| 2 | W10189798 | Drawer Front Assembly (ocean Sapphire) |
|
- | |||||
| 2 | W10172761 | Drawer Front Assembly (chestnut) |
|
- | |||||
| 3 | W11047790 | Drawer Bin (Replaces: W10169635) |
|
$ 205.26 | |||||
| 4 | WPW10189999 | Divider, Drawer (Replaces: W10189999) |
|
Immediately | $ 42.59 | ||||
| 5 | WP8578394 | Slide Assembly (Replaces: 8578394) |
|
$ 103.07 | |||||
| 6 | WPW10346892 | Screw (Replaces: 3400111) |
|
Immediately | $ 7.55 | ||||
| 7 | WP8563585 | Foot Assembly (Replaces: 8563585) |
|
Immediately | $ 14.76 | ||||
| 8 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 3400639) |
|
$ 7.30 | |||||
| 10 | WPW10213953 | Screw, 8-18 X 1/2 (Replaces: 8533995) |
|
Immediately | $ 7.55 | ||||
| 11 | WP8537982 | Pad (4) (Replaces: 8537982) |
|
Immediately | $ 8.69 | ||||
| 12 | WPW10169550 | Brace, Rear (Replaces: W10169550) |
|
$ 41.10 | |||||
| 13 | WP9740849 | Screw, 8-18 X 7/16 (Replaces: 9740849) |
|
$ 7.30 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 8212604 | Paint, Touch-up (1/2oz.) (burgundy) |
|
$ 13.57 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) |
|
$ 59.89 | ||||||
| 350938 | Paint, Pressurized Spray(12 Oz.) (primer, Gray) |
|
- | ||||||
| W10202939 | Paint, Touch-up (1/2oz.) (oxide Metallic) |
|
$ 26.23 | ||||||
| 8212605 | Paint, Touch-up (1/2oz.) (ultimate Silver) |
|
$ 16.01 | ||||||
| W10157756 | Paint, Touch-up (1/2oz.) (aspen) |
|
$ 14.94 | ||||||
| W10162090 | Paint, Touch-up (1/2oz.) (chestnut) |
|
- | ||||||
| W10202940 | Paint, Touch-up (1/2oz.) (ocean Sapphire) |
|
$ 19.32 | ||||||
| W10218248 | Paint, Touch-up (1/2oz.) (emerald Green Metallic) |
|
- | ||||||
| W10218249 | Paint, Touch-up (1/2oz.) (evergreen Gloss) |
|
$ 11.29 |
