SELECT A DIAGRAM

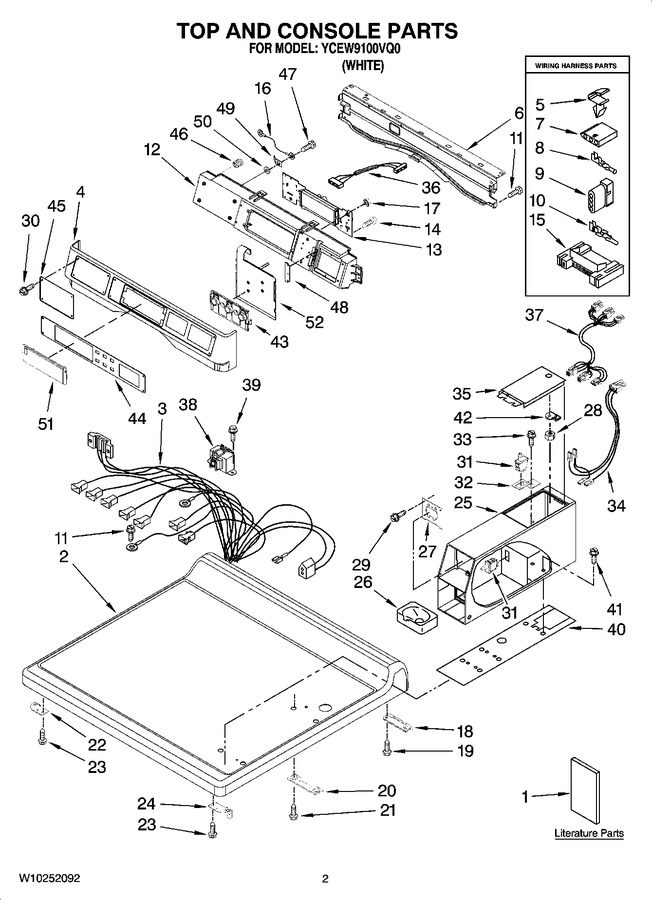

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10135154 | Installation Instructions |
|
- | |||||
| 1 | W10252092 | Parts List |
|
- | |||||
| 1 | W10144126 | Tech Sheet |
|
- | |||||
| 2 | WPW10137411 | Top (Replaces: W10137411) |
|
$ 410.00 | |||||
| 3 | W10166306 | Harness, Main |
|
- | |||||
| 4 | W10779120 | Console (outer) (Replaces: W10137459) |
|
$ 138.64 | |||||
| 5 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | 353424 | Connector, Sensor |
|
$ 18.95 | |||||
| 8 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W11790400 | Console (inner) (Replaces: W10137427) |
|
- | |||||
| 13 | W10137417 | User-interface Assembly |
|
- | |||||
| 14 | 489136 | Screw, 3-24 X 1/32 |
|
$ 10.80 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | W10188087 | Ground Wire Assembly |
|
- | |||||
| 17 | WPW10139046 | Nut, 6-32 (Replaces: W10139046) |
|
$ 9.23 | |||||
| 18 | WP8565018 | Hinge & Pin Assembly (Replaces: 8565018) |
|
$ 115.34 | |||||
| 19 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 20 | 3347825 | Plate, Mounting |
|
- | |||||
| 21 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 22 | W10137445 | Bracket - Top Panel, Left |
|
- | |||||
| 23 | WP489442 | Screw, 8-18 X 1/16 (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 24 | W10137444 | Bracket - Top Panel, Right |
|
- | |||||
| 25 | W10171131 | Meter Case |
|
- | |||||
| 26 | WP385421 | Coin Funnel (Replaces: 385421) |
|
Immediately | $ 77.91 | ||||
| 27 | 279950 | Chute, Adapter Plate Assembly (Replaces: 3954761) |
|
Immediately | $ 28.89 | ||||
| 28 | WP90406 | Cage Nut, 5/16-18 (Replaces: 90406) |
|
$ 9.09 | |||||
| 29 | WP3400029 | Nut, Adapter Plate (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 30 | WPW10137457 | Screw, 8-32 X 3/64 (Replaces: W10137457) |
|
$ 7.85 | |||||
| 31 | WPW10131838 | Switch - Vault & Service Door (Replaces: W10131838) |
|
$ 25.11 | |||||
| 32 | W11204533 | Bracket, Service Switch (Replaces: W10133508) |
|
- | |||||
| 33 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: W10139210) |
|
$ 8.03 | |||||
| 34 | W10847806 | Wire Harness, Sensor Switch (Replaces: W10139456) |
|
$ 119.49 | |||||
| 35 | W11283272 | Service Door Assembly (Replaces: 3351136) |
|
$ 111.17 | |||||
| 36 | W10166307 | Harness, Communication |
|
$ 41.32 | |||||
| 37 | W10166308 | Harness, Meter Case |
|
- | |||||
| 38 | WPW10131839 | Transformer 120 To 22.5 Vac. (Replaces: W10131839) |
|
Immediately | $ 140.23 | ||||
| 39 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 40 | W10137448 | Cushion, Meter Case |
|
- | |||||
| 41 | W11715721 | Screw, 5/16 X 1.00 (Replaces: 3349065) |
|
$ 7.48 | |||||
| 42 | W11401086 | Cam-lock (Replaces: W10156125) |
|
$ 6.17 | |||||
| 43 | W10803340 | Push Button (Replaces: W10137455) |
|
$ 123.24 | |||||
| 44 | W10137441 | Fascia-console |
|
- | |||||
| 45 | W10137462 | Fascia-dispenser |
|
- | |||||
| 46 | WPW10189313 | Insert (8) (Replaces: W10189313) |
|
$ 9.23 | |||||
| 47 | WP488234 | Screw,8-32x1/4 (Replaces: 488234) |
|
$ 7.08 | |||||
| 48 | W10187276 | Seal-console |
|
- | |||||
| 49 | 3373818 | Tab-grounding |
|
- | |||||
| 50 | W10189075 | Washer, Brass |
|
$ 19.13 | |||||
| 51 | WPW10131114 | Display Cover (Replaces: W10131114) |
|
$ 49.92 | |||||
| 52 | WPW10135255 | Membrane Switch & Backer Plate Assembly (Replaces: W10135255) |
|
$ 219.41 |
