01 - Lower Oven Parts
02 - Upper Oven Parts

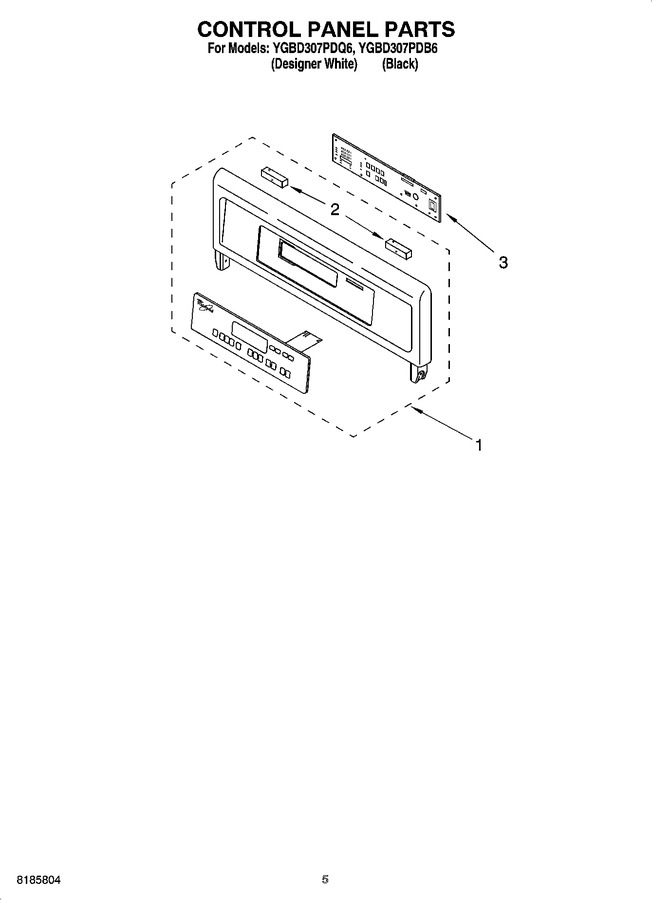

03 - Control Panel Parts
04 - Latch Parts
05 - Internal Oven Parts
06 - Oven Door Parts
07 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8300440 | Control Panel Assy (white) |
|
$ 239.46 | |||||
| 1 | 8300441 | Control Panel Assy (black W/membrane, Switch) |
|
$ 246.19 | |||||
| 1 | WP3400832 | Screw (Replaces: 8281179) |
|
Immediately | $ 8.18 | ||||
| 2 | 4451034 | Gasket, Control Panel |
|
- | |||||
| 3 | 4452891 | Microcomputer |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 3 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 3 | 3192690 | Insulator, Membrane Switch |
|
- |
