01 - Lower Oven Parts

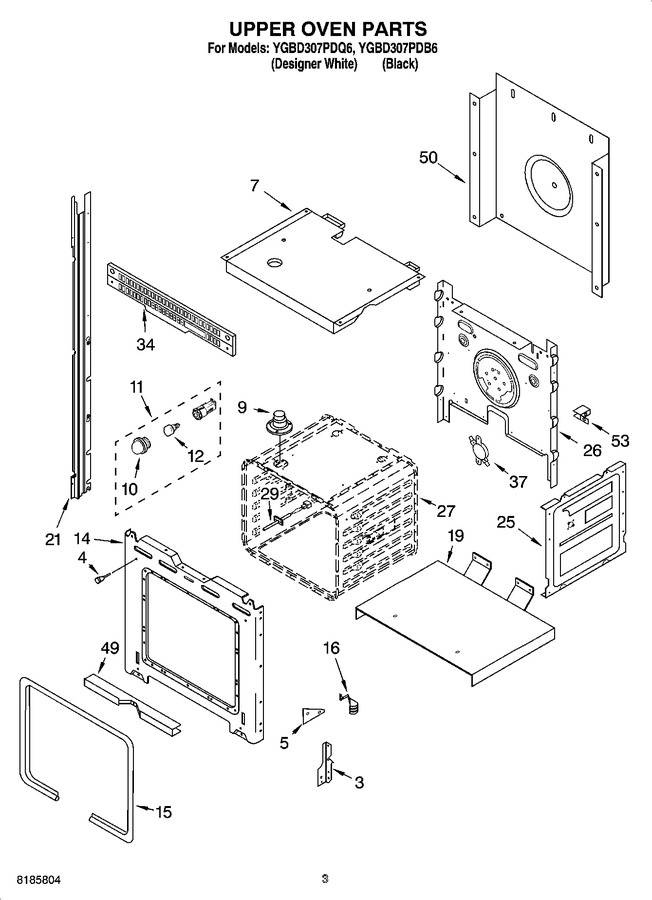

02 - Upper Oven Parts
03 - Control Panel Parts
04 - Latch Parts
05 - Internal Oven Parts
06 - Oven Door Parts
07 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 4455521 | Hinge Receiver (right Hand) |
|
- | |||||
| 3 | 4455520 | Hinge Receiver (left Hand) |
|
- | |||||
| 4 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 5 | WP4455509 | Bracket, Support (Replaces: 4455509) |
|
$ 94.01 | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 7 | 4455286 | Top, Chassis |
|
- | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 122.46 | |||||
| 9 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 10 | 4452165 | Lens, Light |
|
- | |||||
| 11 | 4452368 | Oven Light Assy |
|
- | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 54.49 | ||||
| 14 | 4455612 | Frame, Front |
|
- | |||||
| 14 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 8.78 | |||||
| 14 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 74.56 | ||||
| 16 | 98005642 | Clip, Bulb (Replaces: 313382) |
|
Immediately | $ 87.08 | ||||
| 19 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 21 | WP4448444 | Grommet (Replaces: 4448444) |
|
$ 7.85 | |||||
| 21 | 814373 | Rail, Side (right Side) (Replaces: 4450581) |
|
$ 237.85 | |||||
| 21 | 814374 | Rail, Side (left Side) (Replaces: 4450582) |
|
$ 238.23 | |||||
| 21 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 150.69 | |||||
| 25 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 26 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 105.00 | ||||
| 29 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 34 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 34 | 4452267 | Vent, Center |
|
$ 67.43 | |||||
| 37 | WP9759243 | Thermostat (tod) (temp.) Spst (Replaces: 4451442) |
|
Immediately | $ 59.56 | ||||
| 49 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 50 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 150.07 | |||||
| 53 | 4449845 | Support, Bracket |
|
- | |||||
| 53 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 124.85 | |||||
| 53 | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| 53 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 |
