01 - Cooktop Parts

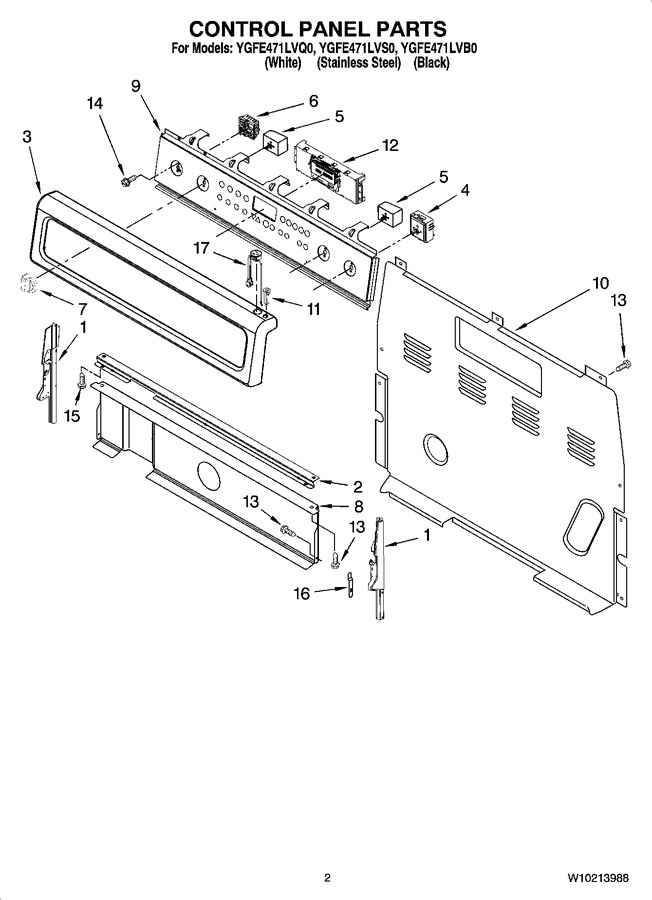

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 3 | W10201511 | Console (white) |
|
$ 75.96 | |||||
| 3 | W10201512 | Console (black) |
|
$ 69.52 | |||||
| 3 | W10201513 | Console (stainless Steel) |
|
$ 46.12 | |||||
| 4 | WPW10149355 | Switch, Infinite Right Front (dual Elmt) (Replaces: W10149355) |
|
Immediately | $ 207.42 | ||||
| 5 | 5500-287 | Switch, Infinite Left & Right Rear (single Elmt) (Replaces: 3148951) |
|
Immediately | $ 54.48 | ||||
| 6 | WPW10169580 | Infinite Switch Left Front (triple Elmt) (Replaces: W10169580) |
|
Immediately | $ 286.01 | ||||
| 7 | W10155337 | Knob, Infinite (4) (black) |
|
$ 20.15 | |||||
| 7 | W10154955 | Knob, Infinite (4) (white) |
|
$ 21.22 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | W10221470 | Active Overlay Assembly (white) |
|
- | |||||
| 9 | W10221471 | Active Overlay Assembly (black) |
|
- | |||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | WP9757601 | Breaker, 15amp (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 11 | WP9757604 | Breaker, 15amp (architect Grey) (Replaces: 9757604) |
|
Immediately | $ 10.94 | ||||
| 11 | WP9757602 | Breaker, 15amp (black) (Replaces: 9757602) |
|
Immediately | $ 60.91 | ||||
| 12 | W10157239 | Control, Range |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 15 | 3196166 | Screw (white) |
|
$ 7.36 | |||||
| 15 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 16 | 3196200 | Clip, Spring (2) |
|
$ 10.45 | |||||
| 17 | W10861164 | Receptacle, Fused (architect Grey) (Replaces: 9758888) |
|
Immediately | $ 18.47 | ||||
| 17 | W10849725 | Receptacle, Fused (white) (Replaces: 9758885) |
|
Immediately | $ 111.11 | ||||
| 17 | 9758886 | Receptacle, Fused (black) |
|
$ 8.00 |
