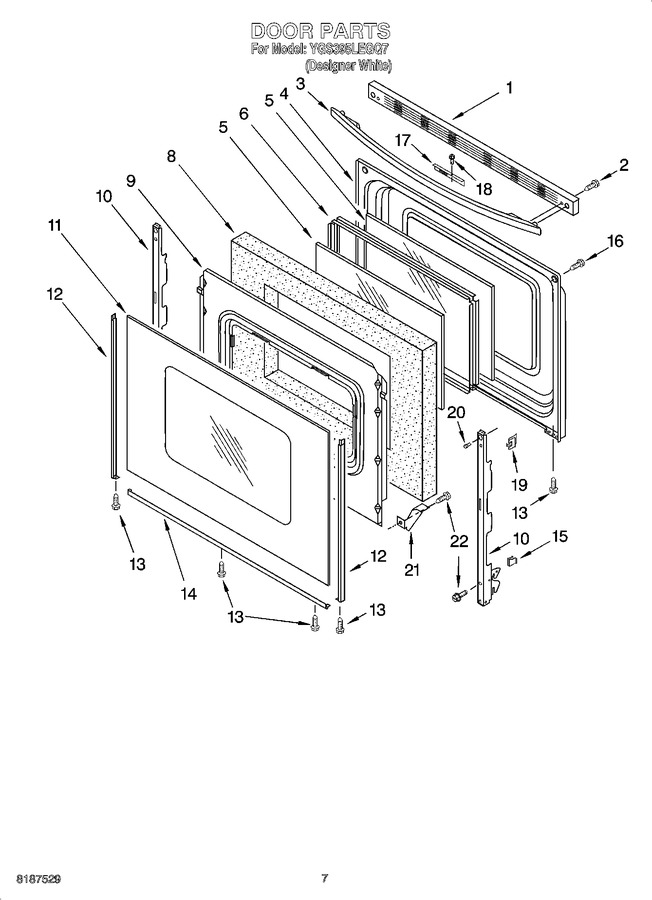

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8522433 | Trim, Top |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | WPW10202216 | Handle, Door (Replaces: 8522444) |
|
$ 333.60 | |||||
| 4 | 3186292 | Liner, Door |
|
- | |||||
| 5 | WP8053948 | Glass, Inner (2) (Replaces: 3186271) |
|
Immediately | $ 208.85 | ||||
| 6 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 3186297) |
|
$ 209.98 | |||||
| 10 | WP8053807 | Hinge, Door (2) (Replaces: 8053807) |
|
$ 91.05 | |||||
| 11 | WP8053834 | Glass, Outer Door (Replaces: 8053480) |
|
$ 262.67 | |||||
| 12 | 8184859 | Trim, Door Side (white R.h.) (Replaces: 8522436) |
|
$ 153.82 | |||||
| 12 | 8184859 | Trim, Door Side (white L.h.) (Replaces: 8522439) |
|
$ 153.82 | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | 8184859 | Trim, Lower Door (white) (Replaces: 3195422) |
|
$ 153.82 | |||||
| 15 | 3196925 | Clip, Door Stop (2) |
|
$ 9.06 | |||||
| 16 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.58 | ||||
| 17 | 3195914 | Bracket, Latch |
|
- | |||||
| 18 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 19 | 3196025 | Clip, Glass (6) |
|
$ 20.10 | |||||
| 20 | 238614 | Bumper (2) (Replaces: 3195809) |
|
$ 76.31 | |||||
| 21 | 3196794 | Bracket, Window (2) |
|
$ 24.34 | |||||
| 22 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 |
