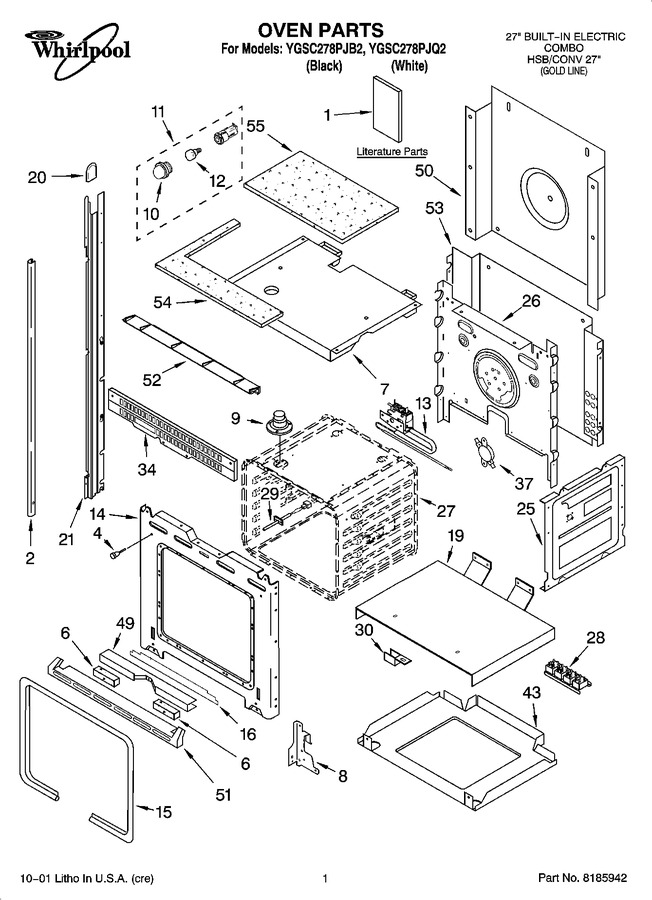

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Door Parts


08 - Microwave Compartment Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300486		Tech Sheet (french)		Appelez-nous	-
1	8300542		Tech Sheet (english)		Appelez-nous	-
1	LIT4449237		Literature Parts (cookbook)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4455987		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8300658		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT8300348		Literature Parts (chart, Speed Cook (label))		Appelez-nous	-
1	LIT8300497		Literature Parts (use & Care Guide (microwave))		Appelez-nous	-
2	4455433		Trim, Side (lh White)		Appelez-nous	-
2	4454431		Trim, Side (lh Black)		Appelez-nous	-
2	4455432		Trim, Side (rh White)		Appelez-nous	-
2	4455430		Trim, Side (rh Black)				$ 67.89
2	WP694091		Screw   (Replaces: 694091)				$ 7.55
4	4448520		Bumper, Door				$ 22.25
6	4452490		Spacer, Foam				$ 34.83
7	4455864		Top, Chassis				$ 22.85
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
8	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
8	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 54.49
13	4450812		Switch, Safety				$ 177.31
14	4455611		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
16	4452336		Insulation, Bottom Vent		Appelez-nous	-
19	4451477		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451605		Cap, Spacer				$ 38.55
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
21	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
28	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 201.17
28	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
28	4451393		Bracket		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 105.00
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
30	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
30	4449845		Bracket-support		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
34	4451666		Vent, Center		Appelez-nous	-
34	4159465		Screw		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 59.56
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4452152		Bracket, Mounting Bottom Trim				$ 35.18
51	4159465		Screw		Appelez-nous	-
51	4455442		Trim, Bottom (black Model)		Appelez-nous	-
51	4455444		Trim, Bottom (white Model)		Appelez-nous	-
52	4450787		Vent, Control		Appelez-nous	-
53	4451755		Chassis, Back		Appelez-nous	-
54	4452492		Insulation, Convection Top		Appelez-nous	-
55	4449315		Insulation, Wrap				$ 64.81
55	4452491		Insulation, Convection Grill		Appelez-nous	-
55	4450364		Insulation, Back		Appelez-nous	-
