SELECT A DIAGRAM

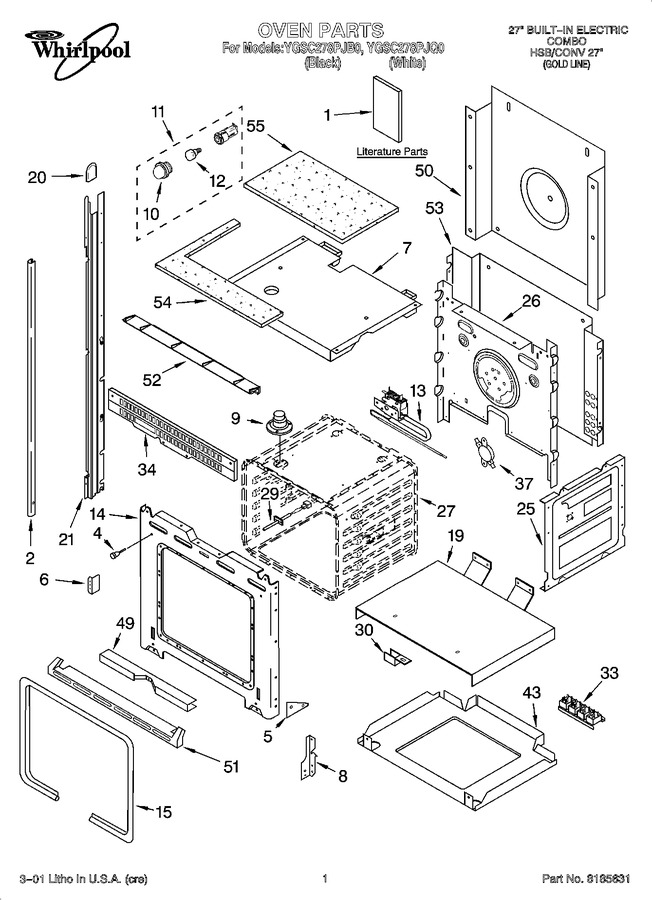

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Door Parts


08 - Microwave Compartment Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8300283		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4449237		Literature Parts (cookbook)		Appelez-nous	-
1	LIT4450412		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8300347		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT8300348		Literature Parts (chart, Speed Cook (label))		Appelez-nous	-
1	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
1	LIT8300346		Literature Parts (use & Care Guide) (microwave)		Appelez-nous	-
2	WP694091		Screw   (Replaces: 694091)				$ 7.55
2	4455433		Trim, Side (lh White)		Appelez-nous	-
2	4454431		Trim, Side (lh Black)		Appelez-nous	-
2	4455432		Trim, Side (rh White)		Appelez-nous	-
2	4455430		Trim, Side (rh Black)				$ 67.89
4	4448520		Bumper, Door				$ 22.25
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
6	4455510		Bracket, Support		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455285		Top, Chassis		Appelez-nous	-
8	4455573		Hinge Receiver (right Hand)		Appelez-nous	-
8	4455572		Hinge Receiver (left Hand)		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	4450812		Safety Switch (oven Temp)				$ 177.31
14	4451739		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451477		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	4449845		Bracket-support		Appelez-nous	-
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
33	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 201.17
33	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
33	4451393		Bracket		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
34	4451666		Vent, Center		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
43	4455529		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4455442		Trim, Bottom (black Model)		Appelez-nous	-
51	4452152		Bracket, Mounting Bottom Trim				$ 35.18
51	4455444		Trim, Bottom (white Model)		Appelez-nous	-
51	4159465		Screw		Appelez-nous	-
52	4450787		Vent, Control		Appelez-nous	-
53	4451755		Chassis, Back		Appelez-nous	-
54	4452492		Insulation, Convection Top		Appelez-nous	-
55	4450364		Insulation, Back		Appelez-nous	-
55	4452491		Insulation, Convection Grill		Appelez-nous	-
55	4449315		Insulation, Wrap				$ 64.81

    View Diagram in Separate Window       Print Part List
