Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT4449237 Literature Parts (cookbook) Appelez-nous -
1 LIT8300650 Literature Parts (installation Instructions) Appelez-nous -
1 8300542 Tech Sheet (oven) (english) Appelez-nous -
1 8300486 Tech Sheet (oven) (french) Appelez-nous -
1 LIT3191638 Safer Cooking Tips Appelez-nous -
1 8300346 Use & Care Guide Microwave (english) Appelez-nous -
1 8300497 Use & Care Guide Microwave (french) Appelez-nous -
1 8300669 Use & Care Guide Oven (english) Appelez-nous -
1 8300658 Use & Care Guide Oven (french) Appelez-nous -
1 LIT8300348 Literature Parts (oven) Appelez-nous -
1 LIT8300349 Literature Parts (microwave) Appelez-nous -
2 WP694091 Screw   (Replaces: 694091) Special Order $ 7.55

2 4455430 Trim, Side (rh Black) Special Order $ 67.89

2 4455432 Trim, Side (rh White) Appelez-nous -
2 4455431 Trim, Side (lh Black) Special Order $ 65.17

2 4455433 Trim, Side (lh White) Appelez-nous -
3 WP4455606 Hinge Receiver (right)   (Replaces: 4455606) In-Stock Immediately $ 131.74

3 WP4455605 Hinge Receiver (left)   (Replaces: 4455605) In-Stock Immediately $ 127.70

4 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 8.18

4 4448520 Bumper, Door Special Order $ 22.25

7 4455865 Top, Chassis Appelez-nous -
7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

8 98005642 Clip, Bulb   (Replaces: 313382) In-Stock Immediately $ 87.08

9 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 14.72

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 122.46

10 4452165 Lens, Light Appelez-nous -
11 4452368 Oven Light Assy Appelez-nous -
12 WP4173175 Bulb, Light   (Replaces: 4452166) In-Stock Immediately $ 53.62

13 4451393 Bracket, Relay Appelez-nous -
13 WP9752759 Relay, Double Line Break   (Replaces: 9752759) In-Stock Immediately $ 201.17

14 4455612 Frame, Front Appelez-nous -
14 WP4449040 Scre   (Replaces: 4449040) Special Order $ 6.78

15 W11675844 Gasket, Door   (Replaces: 4455382) In-Stock Immediately $ 74.56

16 4452490 Spacer, Foam Special Order $ 34.83

17 4452337 Insulation Bottom Vent Appelez-nous -
19 4451478 Support, Insulation Special Order $ 54.10

19 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

20 4451605 Cap, Spacer Special Order $ 38.55

21 4450584 Rail, Side (left Side) Appelez-nous -
21 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

21 WP4448444 Grommet   (Replaces: 4448444) Special Order $ 7.85

21 4450583 Rail, Side (right Side) Appelez-nous -
22 4450812 Safety Switch (oven Temp) Special Order $ 177.31

25 W10782197 Side, Chassis (r.h. & L.h.)   (Replaces: 4455641) Special Order $ 150.69

25 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

26 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

26 4452234 Back, Chassis Appelez-nous -
29 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

29 WPW10131825 Sensor   (Replaces: 4455636) In-Stock Immediately $ 95.83

30 4449845 Bracket-support Appelez-nous -
30 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

34 WP4450038 Screw   (Replaces: 4450038) Special Order $ 8.30

34 4451667 Vent, Center Appelez-nous -
35 4449906 Ext Filler Appelez-nous -
37 WP9759243 Thermostat (tod) (temp.) Spst   (Replaces: 4451442) In-Stock Immediately $ 55.44

37 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

43 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

43 4455530 Base, Chassis Appelez-nous -
49 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

49 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 9.30

50 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

50 WP4451747 Cover-back   (Replaces: 4451747) Special Order $ 150.07

51 4455445 Trim, Bottom (white) Appelez-nous -
51 4455443 Trim, Bottom (black) Appelez-nous -
51 4450289 Screw Appelez-nous -
52 4450791 Vent, Control Appelez-nous -
53 4452152 Bracket, Mounting Bottom Trim Special Order $ 35.18

53 4451756 Chassis, Back Appelez-nous -
54 4452492 Insulation, Top Appelez-nous -
55 4450365 Insulation, Back Special Order $ 70.95

55 4452491 Insulation, Grill Appelez-nous -
55 W11684730 Insulation, Wrap   (Replaces: 4449316) Special Order $ 124.85


    View Diagram in Separate Window     Print Icon   Print Part List

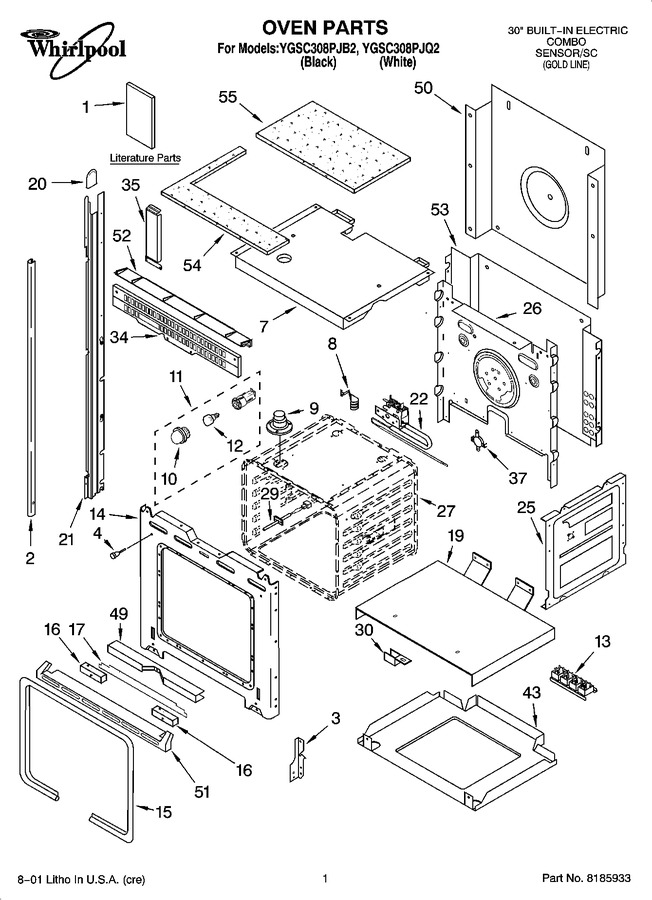

Diagram for YGSC308PJB2
