SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts

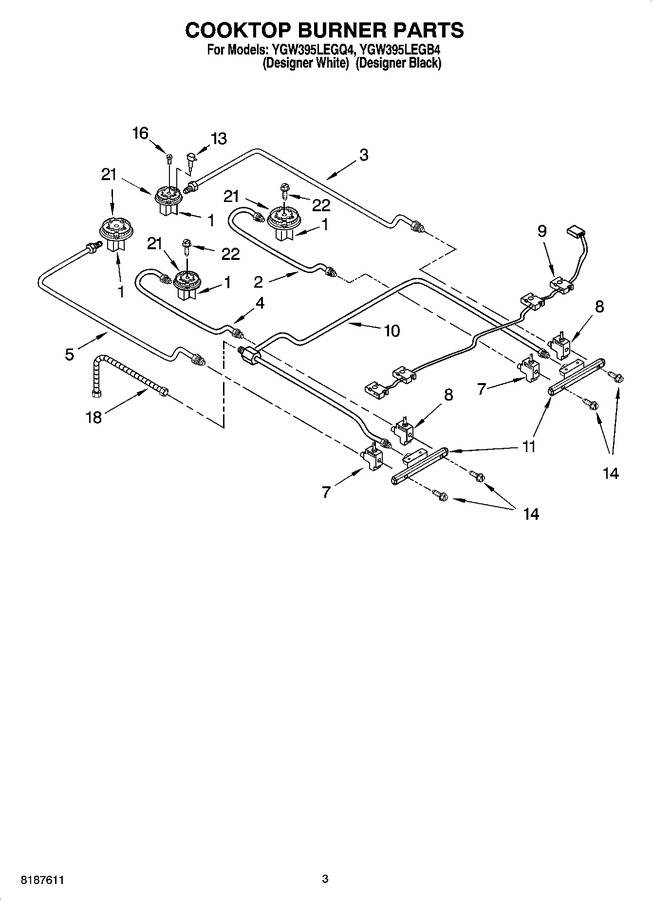

03 - Cooktop Burner Parts


04 - Broiler & Oven Burner Parts


05 - Door And Drawer Parts


06 - Oven Chassis Parts


07 - Rear Chassis Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754189		Burner Base W/orifice (large (2))		Appelez-nous	-
1	9754183		Burner Base W/orifice (small (2))		Appelez-nous	-
2	9753005		Tubing, Burner (rf)		Appelez-nous	-
3	9753006		Tubing, Burner (rr)		Appelez-nous	-
4	9753003		Tubing, Burner (lf)		Appelez-nous	-
5	9753004		Tubing, Burner (lr)		Appelez-nous	-
7	9753045		Valve, Burner Small (2)				$ 120.98
8	9753044		Valve, Burner Large (2)		Appelez-nous	-
9	9752994		Spark Switch & Harness Assembly				$ 91.19
10	9754148		Tube, Manifold		Appelez-nous	-
11	9754116L		Manifold (left Hand)		Appelez-nous	-
11	9754116R		Manifold (right Hand)		Appelez-nous	-
13	WP9754215		Electrode   (Replaces: 9754215)			Immediately	$ 54.96
14	3185829		Bolt, Valve (4)		Appelez-nous	-
16	WP9753929		Orifice, Burner (large Base, 12k)   (Replaces: 9753929)				$ 84.74
16	9753928		Orifice, Burner (small Base, 6k)				$ 38.86
18	9751854		Tubing, Flex		Appelez-nous	-
21	8273216		Head, Burner (small)		Appelez-nous	-
21	WP4455981		Head, Burner (large)   (Replaces: 8273214)			Immediately	$ 91.90
22	WPW10067840		Screw, 8-18 X .650   (Replaces: 8281147)				$ 8.30

    View Diagram in Separate Window       Print Part List
