SELECT A DIAGRAM

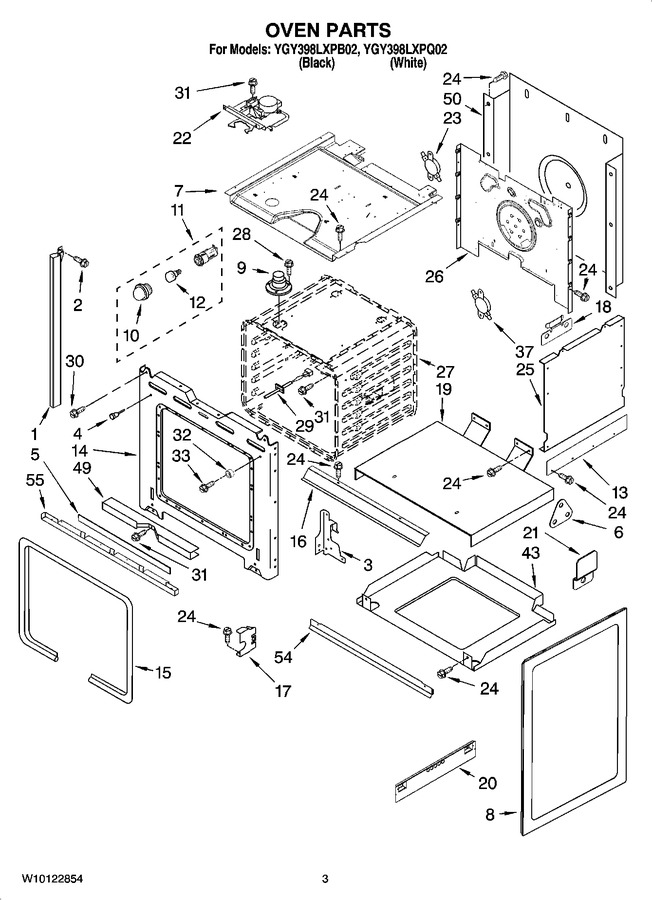

01 - Cooktop Parts


02 - Control Panel Parts


03 - Oven Parts


04 - Door And Drawer Parts


05 - Internal Oven Parts


06 - Top Venting Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9757735BL		Trim, Side (black Rh)		Appelez-nous	-
1	9757734WH		Trim, Side (white Lh)		Appelez-nous	-
1	9757734BL		Trim, Side (black Lh)		Appelez-nous	-
1	9757735WH		Trim, Side (white Rh)		Appelez-nous	-
2	WP3400805		Screw   (Replaces: 3400805)				$ 7.55
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door   (Replaces: 9760749)				$ 7.41
5	9757717		Insulation, Bottom Vent		Appelez-nous	-
6	9757461		Bracket, Side Panel				$ 37.11
7	8303099		Top Chassis				$ 70.97
8	9760723PB		Oven, Side Panel (black)		Appelez-nous	-
8	9760723PW		Oven, Side Panel (white)		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Oven Light Assy   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 54.49
13	9757732		Shield, Heat		Appelez-nous	-
14	WPW10115831		Frame, Front   (Replaces: 9760756)				$ 351.89
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
15	W11675844		Gasket, Door   (Replaces: W10074200)			Immediately	$ 74.56
16	4453951		Deflector, Vent Bottom		Appelez-nous	-
17	4452152		Bracket, Mounting				$ 35.18
18	9757685		Guide, Side Panel				$ 36.23
19	4451478		Support, Insulation				$ 54.10
20	9757811		Brace, Side Panel		Appelez-nous	-
21	9759890		Clip, Side Panel				$ 9.71
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	341196		Thermostat Spst (205)				$ 33.17
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452234		Back, Chassis		Appelez-nous	-
28	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 105.00
30	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
31	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
32	4448520		Bumper, Door				$ 22.25
33	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
37	WP9759243		Thermostat (120c)   (Replaces: 9759243)			Immediately	$ 59.56
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
54	9756481WH		Vent, Bottom Upper (white)		Appelez-nous	-
54	9756481BL		Vent, Bottom Upper (black)		Appelez-nous	-
55	9756470		Insulation, Back				$ 68.08
55	W10104910		Trim, Btm Vent (white)		Appelez-nous	-
55	W10104890		Trim, Btm Vent (black)		Appelez-nous	-
55	9756817		Insulation, Wrap				$ 76.03
