Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10250207 Glass, Double Appelez-nous -
2 W10250214 Glass, Triple Appelez-nous -
3 W10250969 Support, Top Appelez-nous -
4 W10204405 Glass, Outer Asy Appelez-nous -
5 W10250224 Clip, Spring (double Clip (2)) Appelez-nous -
5 W10250826 Clip, Spring (small Double (2)) Appelez-nous -
5 W10250223 Clip, Spring (spring (8)) Appelez-nous -
6 W10250972 Support, Bttm Left Appelez-nous -
7 W10205085 Cover, Roller Appelez-nous -
8 W10204408 Roller, Hinge Special Order $ 42.70

9 W10202961 Hinge, Door Appelez-nous -
10 W10250829 Support, Bttm Rght Special Order $ 35.83

11 W10204297 Spacer, Handle Special Order $ 56.14

12 W10204296 Handle, Door Special Order $ 115.11

13 W10250247 Spacer (handle) Appelez-nous -
13 W10250246 Spacer (glass) Special Order $ 33.29


    View Diagram in Separate Window     Print Icon   Print Part List

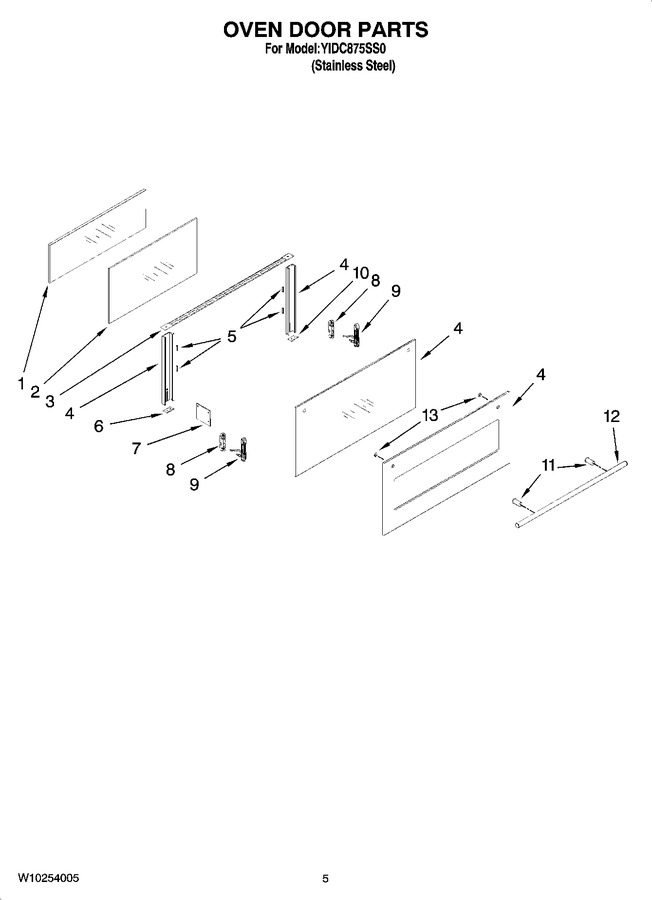

Diagram for YIDC875SS0
