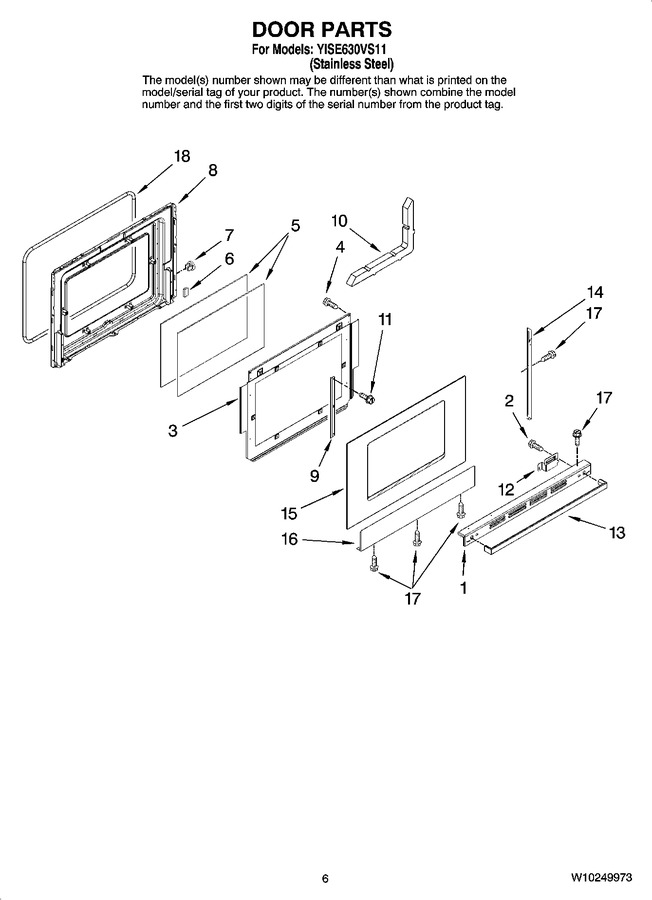

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165419 | Trim, Door Top |
|
- | |||||
| 2 | WP74006515 | Screw, Handle (2) (Replaces: 74011674) |
|
$ 8.84 | |||||
| 3 | 74009528 | Baffle, Retainer |
|
- | |||||
| 4 | W11233072 | Screw, 8ab X 1/2 (Replaces: 74001530) |
|
Immediately | $ 14.72 | ||||
| 5 | 74003320 | Glass, Inner (2) |
|
$ 86.35 | |||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 74005546) |
|
$ 11.06 | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 74001574) |
|
Immediately | $ 11.74 | ||||
| 8 | 74004972 | Lining, Door |
|
- | |||||
| 9 | 74011458 | Bracket, Glass (2) |
|
- | |||||
| 10 | 74001842 | Insulation, Door |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 8.25 | ||||
| 12 | 3801F832-45 | Bracket, Handle (left) (Replaces: 74009699) |
|
$ 22.30 | |||||
| 12 | 3801F831-45 | Bracket, Handle (right) (Replaces: 74009698) |
|
$ 22.37 | |||||
| 13 | W10184494 | Handle, Door |
|
$ 65.42 | |||||
| 14 | 74009692 | Trim, Door Side (right) |
|
- | |||||
| 14 | 74009693 | Trim, Door Side (left) |
|
- | |||||
| 15 | W10197688 | Glass, Door |
|
- | |||||
| 16 | W10190750 | Panel, Oven Door (bottom) |
|
$ 155.24 | |||||
| 18 | WPW10162384 | Seal, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 5.07 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 3191048 | Cleaner, Glass |
|
- | ||||||
| WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 98.65 | ||||||
| WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 330.36 | ||||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 28.54 | |||||
| 74010890 | Harness, Sensor |
|
$ 34.51 | ||||||
| 5171P553-60 | Harness, Switch (rt) (Replaces: 74011089) |
|
$ 192.41 | ||||||
| 74011091 | Harness, Switch (lt) |
|
- | ||||||
| 5171P931-60 | Harness, Main |
|
$ 236.88 | ||||||
| 5700P822-60 | Cable, Assy.(flex) (Replaces: 74011206) |
|
- | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 8019P013-60 | Clip, Wire (Replaces: 74006811) |
|
$ 15.70 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 87.22 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 51.75 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1qt.) (biscuit) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 |
