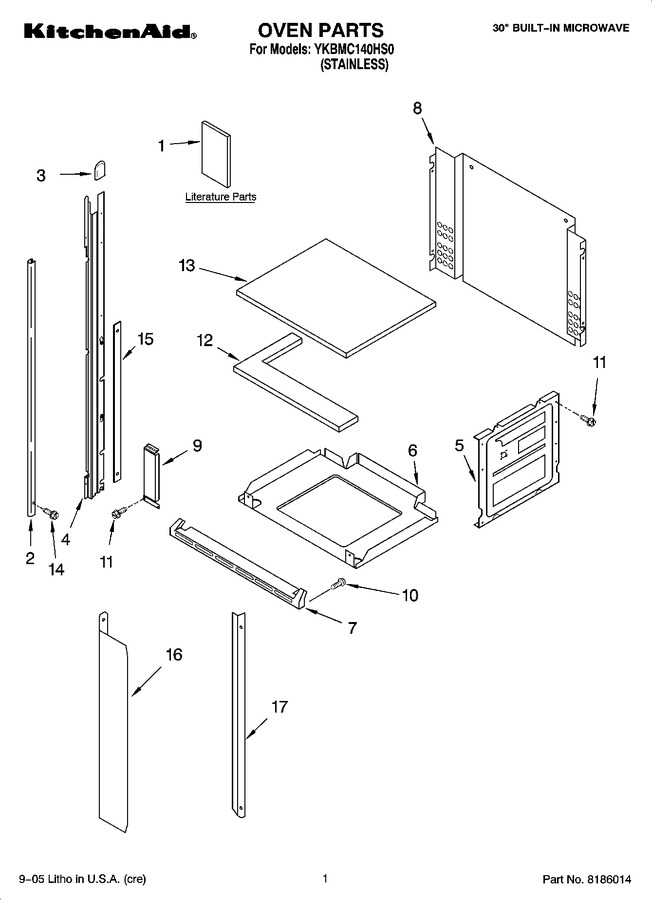

01 - Oven Parts


02 - Control Panel Parts


03 - Microwave Compartment Parts


04 - Cabinet And Stirrer Parts


05 - Top Venting Parts


06 - Microwave Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4451052		Literature Parts (chart, Hs Cook)		Appelez-nous	-
1	LIT4455988		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4452614		Literature Parts (use & Care Guide Microwave (english))		Appelez-nous	-
1	LIT4452618		Literature Parts (use & Care Guide (french))		Appelez-nous	-
1	LIT4453330		Literature Parts (cook Guide Label)		Appelez-nous	-
1	LIT8300488		Literature Parts (tech Sheet (english))		Appelez-nous	-
1	LIT8300544		Literature Parts (tech Sheet (french))		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide (english))		Appelez-nous	-
1	LIT4448687		Literature Parts (easy Set Guide (french))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4452556		Trim, Side (rh Stainless)		Appelez-nous	-
2	4452557		Trim, Side (lh Stainless)		Appelez-nous	-
3	4451605		Cap, Spacer				$ 38.55
4	4452550		Rail, Side (left Side)		Appelez-nous	-
4	4452549		Rail, Side (right Side)		Appelez-nous	-
5	4452559		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
6	4452541		Base, Chassis		Appelez-nous	-
7	4452569		Stainless		Appelez-nous	-
8	4452554		Chassis, Back		Appelez-nous	-
9	4449906		Extension Filler		Appelez-nous	-
10	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
11	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
12	4452492		Insulation-grill		Appelez-nous	-
13	4452491		Insulation-top		Appelez-nous	-
14	WP694091		Screw   (Replaces: 694091)				$ 7.55
15	4455471		Spacer, Rail (2)		Appelez-nous	-
16	4455476		Bracket		Appelez-nous	-
17	4455475		Bracket		Appelez-nous	-
