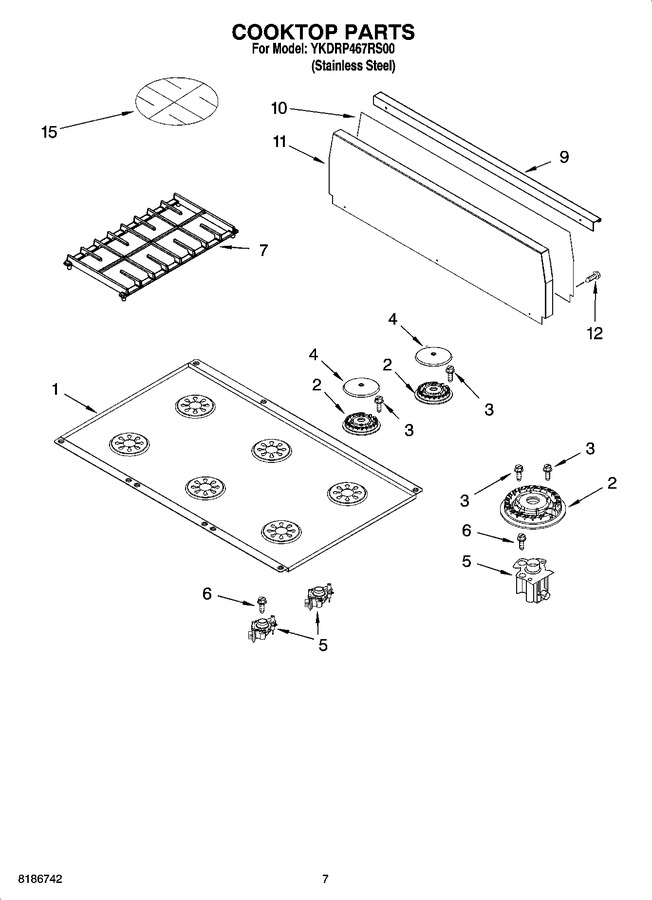

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9760871		Cooktop		Appelez-nous	-
2	4455849		Burner Head (turbi)				$ 47.68
2	4455979		Burner Head (auxi)				$ 28.52
3	WP3368921		Screw, 7-18 X 3/4   (Replaces: 3368921)			Immediately	$ 8.56
4	WP8284669		Cap, Burner ((6k))   (Replaces: 8284669)			Immediately	$ 75.59
4	4455243		Cap, Burner ((14k))				$ 41.37
5	WPW10155786		Orifice Holder (turbi)   (Replaces: 4456622)			Immediately	$ 119.19
5	4456920		Orifice Holder (auxi (includes Orific & Ignitor))		Appelez-nous	-
6	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 7.55
7	4457149		Grate, Burner		Appelez-nous	-
9	4454962		Trim, Island		Appelez-nous	-
10	9762603		Support, Backsplash		Appelez-nous	-
11	9762605		Trim, Backsplash		Appelez-nous	-
12	WP3400805		Screw, 8-18 X 3/8   (Replaces: 3400837)				$ 7.55
15	4455109		Plate, Simmer				$ 52.31
