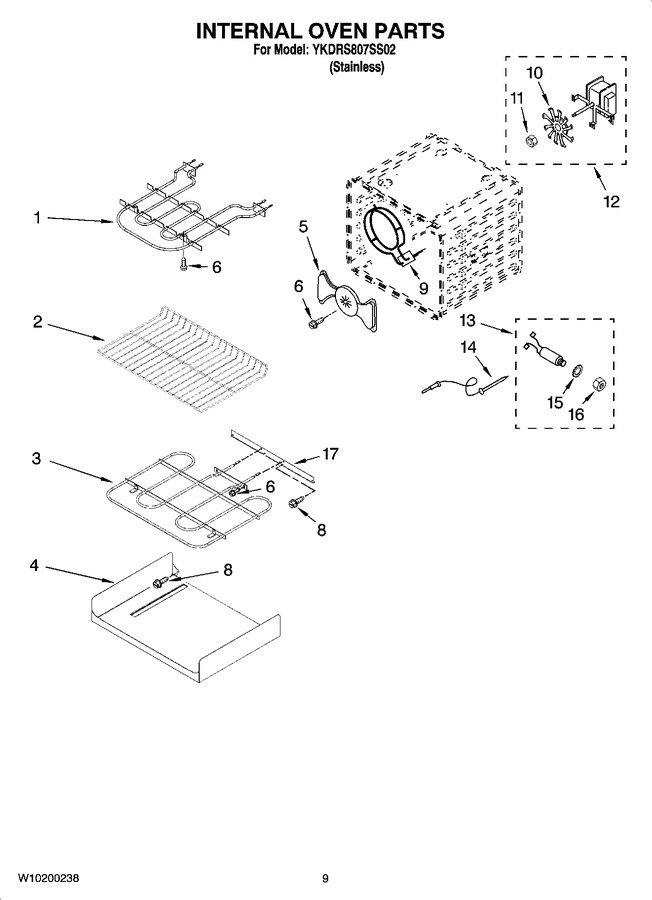

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9760774 | Element, Broil (Replaces: 9760774) |
|
Immediately | $ 229.00 | ||||
| 2 | WPW10179152 | Rack, Oven (Replaces: 4448717) |
|
Immediately | $ 119.61 | ||||
| 3 | WPW10207398 | Element, Bake (Replaces: 9760768) |
|
Immediately | $ 133.00 | ||||
| 4 | 4455037 | Tray, Bake Hidden |
|
$ 73.11 | |||||
| 5 | W10860133 | Cover, Fan (Replaces: 9756690) |
|
$ 256.58 | |||||
| 6 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 9 | WP9760769 | Element Convection (Replaces: 9760769) |
|
Immediately | $ 337.88 | ||||
| 10 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 11 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 21.78 | |||||
| 12 | W10794022 | Motor, Convection Fan (Replaces: W10116228) |
|
Immediately | $ 214.63 | ||||
| 13 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 14 | WP9755542 | Probe, Meat (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 15 | WP9755547 | Lockwasher (Replaces: 9755547) |
|
$ 6.41 | |||||
| 16 | WP9755546 | Nut, Hex (Replaces: 9755546) |
|
$ 7.30 | |||||
| 17 | 4450039 | Cover, Bake Tray |
|
$ 92.11 |
