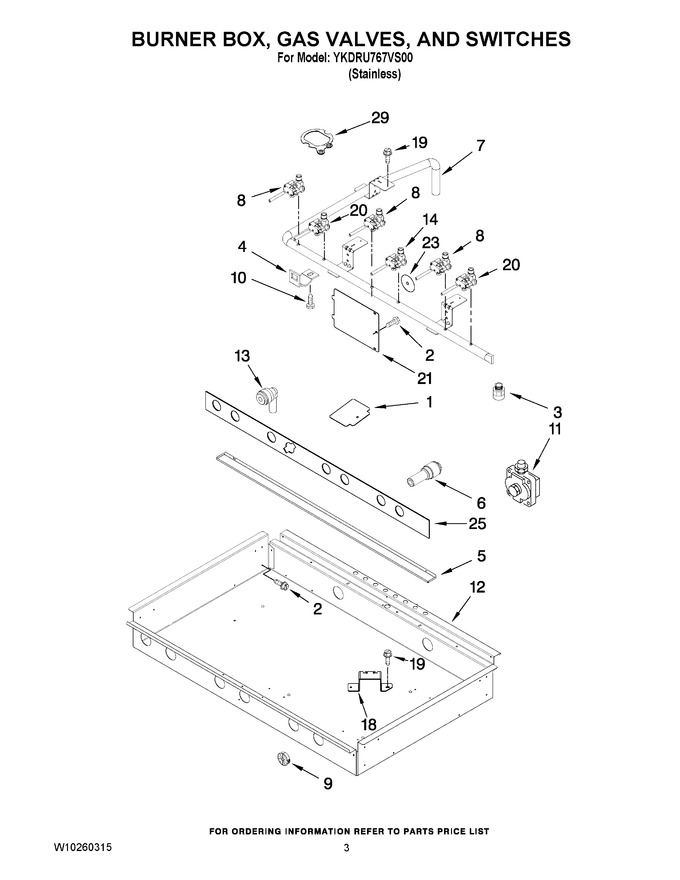

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10287036 | Cover, Housing |
|
- | |||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 3 | 4453115 | Adapter, Female |
|
$ 126.70 | |||||
| 3 | 4453116 | Adapter (male) |
|
$ 179.43 | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 5 | W10269214 | Tray, Drip |
|
- | |||||
| 6 | W10051680 | Reducer, Stem |
|
$ 54.62 | |||||
| 7 | W10115896 | Manifold |
|
$ 104.48 | |||||
| 8 | W10250407 | Valve, Single (lr, Cf, Rr) |
|
- | |||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.82 | |||||
| 11 | W10293267 | Regulator, Pressure |
|
$ 313.91 | |||||
| 12 | W10250425 | Burner Box |
|
- | |||||
| 13 | W10076960 | Elbow, Plug In |
|
$ 29.24 | |||||
| 14 | WPW10385583 | Valve, Single (cr) (Replaces: W10284547) |
|
Immediately | $ 332.10 | ||||
| 18 | W10280796 | Bracket, Burner ( Rr) |
|
- | |||||
| 18 | W10115929 | Bracket, Burner (lf, Lr & Rf) |
|
- | |||||
| 19 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 20 | WPW10371235 | Valve, Gas Lf, Rf (Replaces: W10250410) |
|
Immediately | $ 268.41 | ||||
| 21 | W10115843 | Cover, Ignition |
|
- | |||||
| 23 | W10189177 | Seal, Switch Cover |
|
$ 10.00 | |||||
| 25 | W11688578 | Insulation (Replaces: W10145622) |
|
- | |||||
| 29 | 8286930 | Gasket, Orifice |
|
$ 95.73 | |||||
| NI | W10115911 | Tubing, Gas (lr, Rf) |
|
$ 188.34 | |||||
| NI | W10280797 | Tubing, Gas Lr |
|
- | |||||
| NI | W10269191 | Regulator, Tube-pressure |
|
$ 217.69 | |||||
| NI | W10115908 | Tubing, Gas (lr, Cf, Rr) |
|
- | |||||
| NI | W10115910 | Tubing, Gas (cr) |
|
$ 176.20 |
